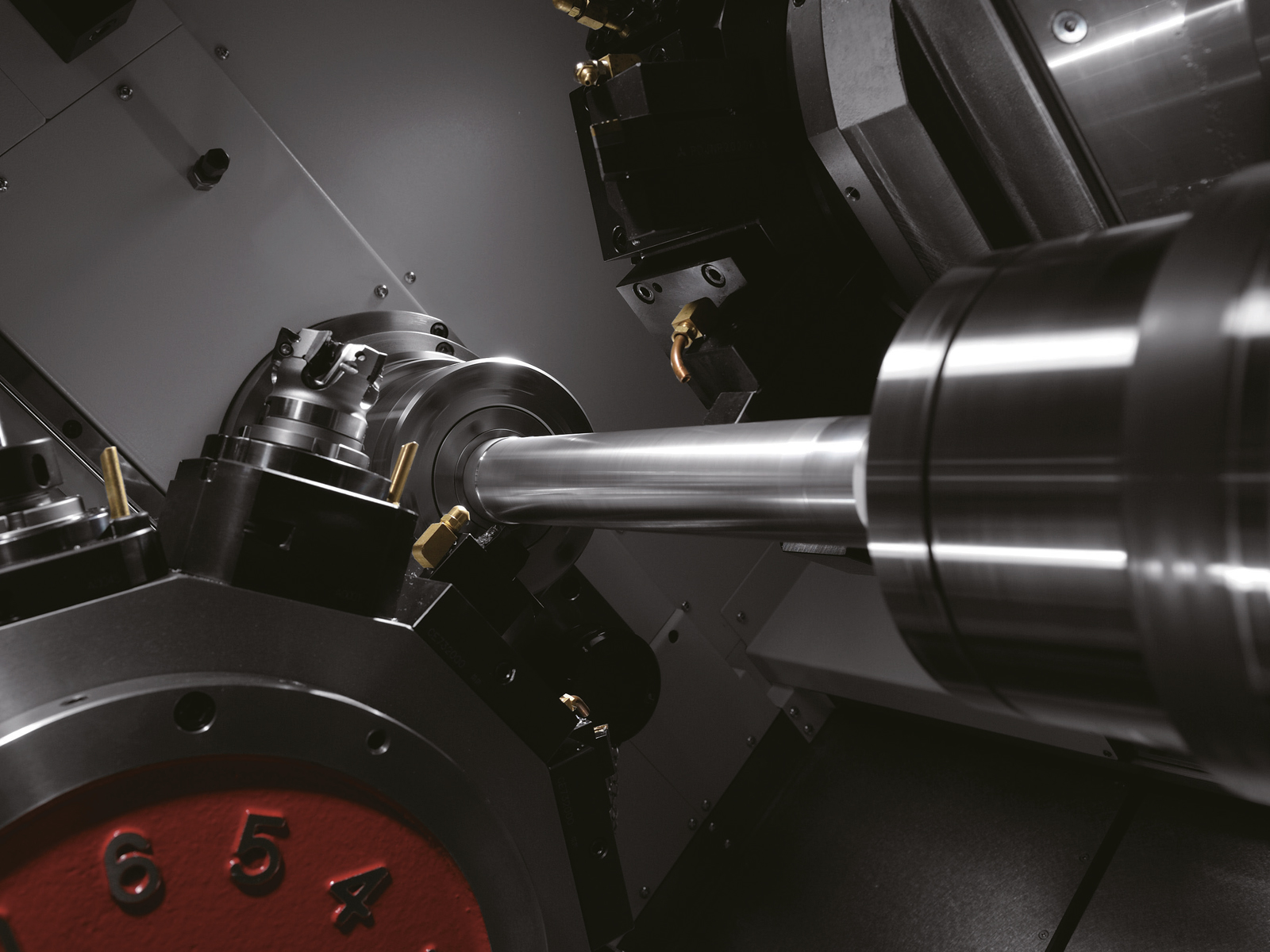

The ability to machine simultaneously at the left and right spindles using the upper and lower turrets, both featuring a Y-axis function, means that complete front and back machining of products with complex shapes can be accomplished simply and in a short time.

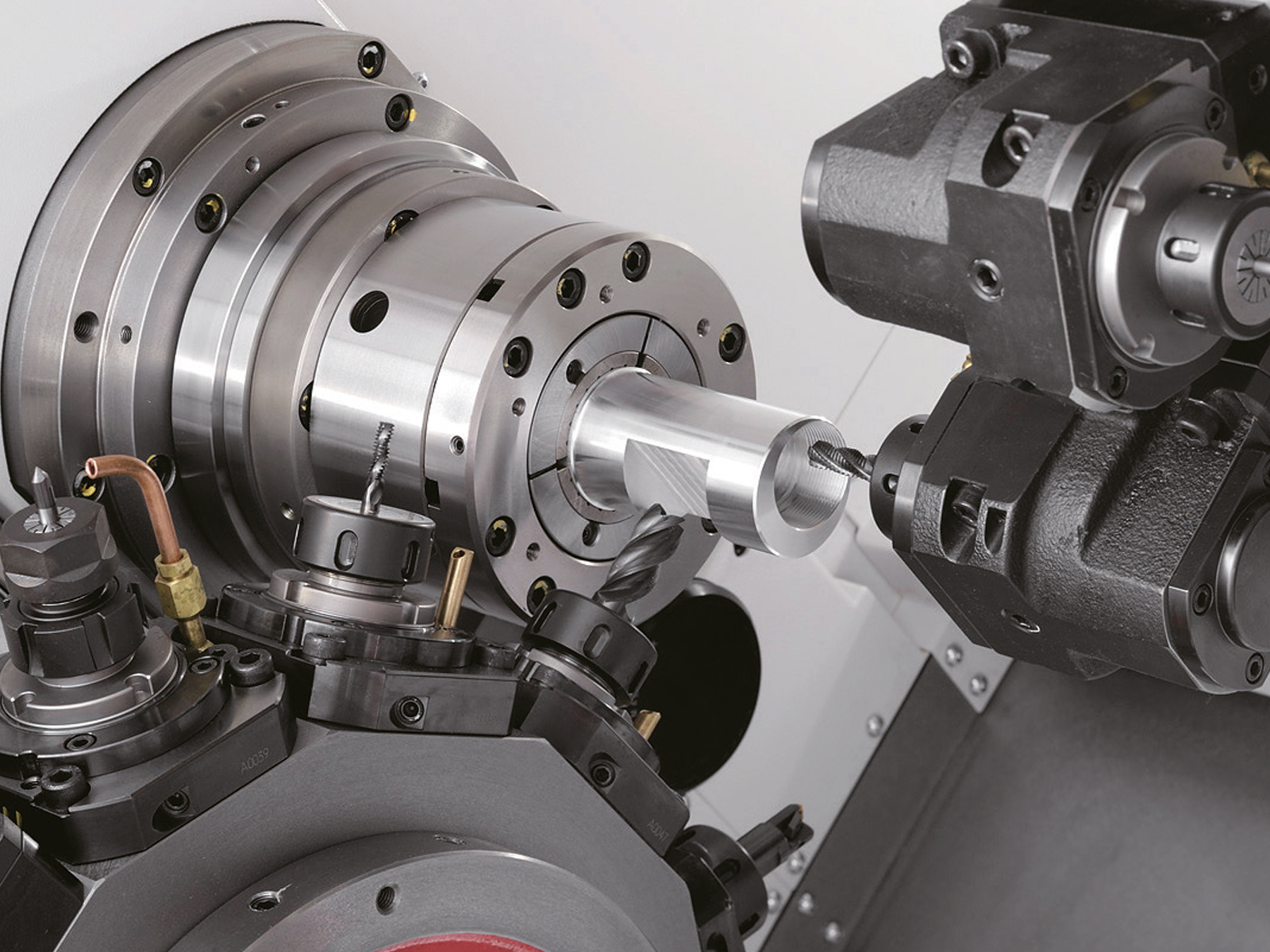

High rigidity and high torque with 40 Nm revolving tools
The use of rigid 40 Nm revolving tool drives capable of heavy cutting ensures stable milling.

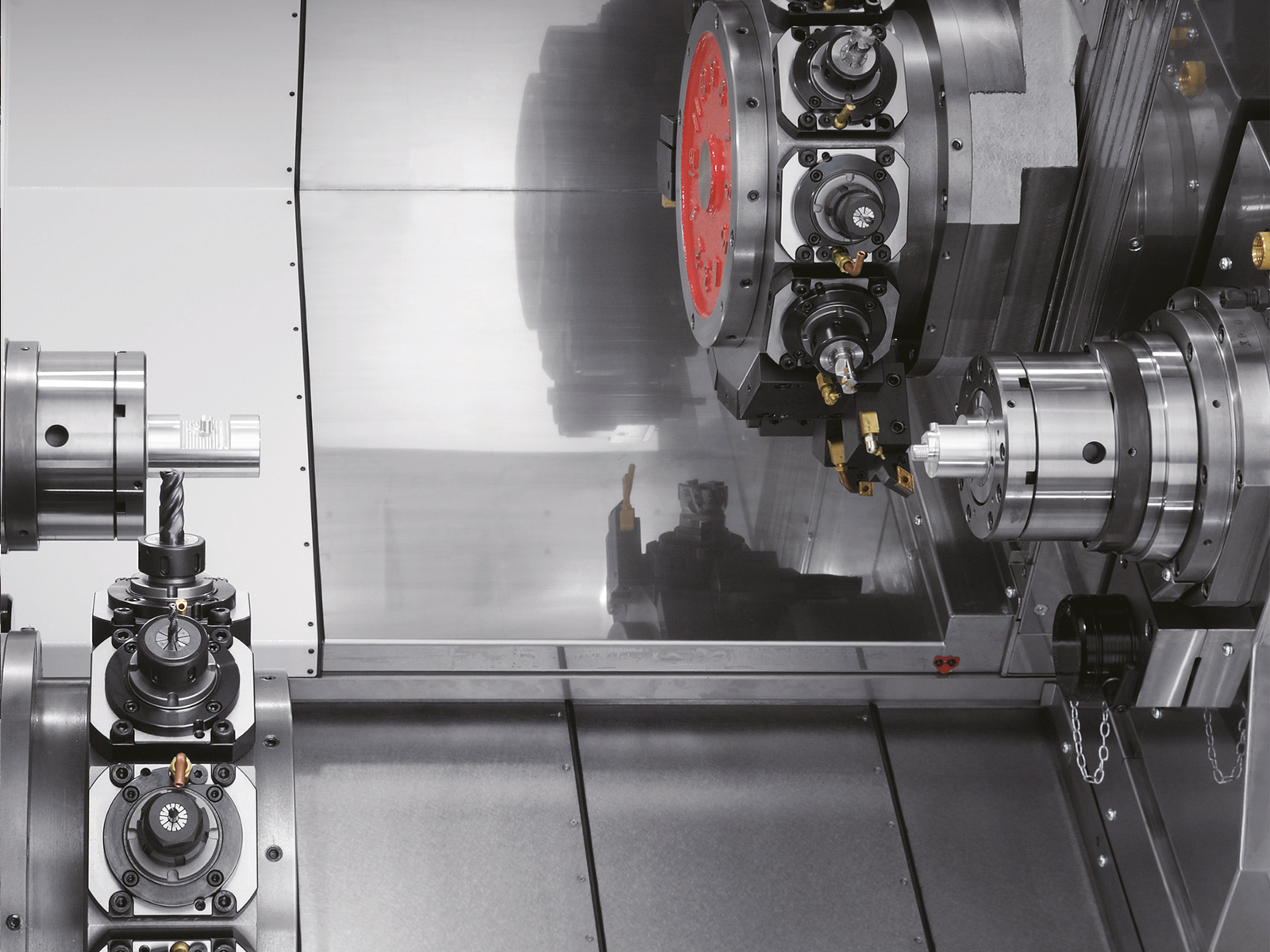

Two turrets with a total of 24 tool positions handle complex machining just like a machining center.
Items | ABX-51SYY2 | ABX-64SYY2 | |
---|---|---|---|
Machining Capacity and Chuck System | |||
Maximum Machining Diameter of Bar Work | SP1/SP2 | ø51/51mm | ø64/51mm |
Collet Chuck | SP1/SP2 | Stationary | |
Power Chuck | SP1/SP2 | 6″/6″ hydraulic drive | |
Standard Turning Length | 125mm | ||
Spindle | |||
Spindle Nose | SP1/SP2 | A2-6/A2-6 | A2-8/A2-6 |
Spindle motor(30min./Cont.) | SP1 | 15/11kW | |
SP2 | 7.5/5.5kW | ||
Spindle Speed Range | SP1 | 50 – 5,000min-1 | 40 – 4,000min-1 |
SP2 | 50 – 5,000min-1 | ||
Turrets(Upper L/R Turrets & Lower Turret) | |||
Type of Turret | 12St.Turret | ||
Shank Height of Square Turning Tool | □20mm | ||
Diameter of Drill Shank | ø40mm ø20mm ø25mm | ||
Slide Stroke | X1, X2 axis | 190mm | |
Z1/Z2 axis | 550mm/721mm | ||
Y1, Y2 axis | ±40mm | ||
Zs axis | 756mm | ||
Rapid Traverse Rate | X1, X2 axis | 16m/min | |
Z1/Z2 axis | 30/20m/min | ||
Y1, Y2 axis | 12m/min | ||
Zs axis | 30m/min | ||
Revolving Tools(Option) | |||
Maximum Number of Revolving Tools | 24 | ||
Rotation speed of revolving tools | 60 – 6,000min-1 | ||
Rivolving Tool Motor | AC Servo 4.5kW | ||
Machine Dimensions | |||
Machine Height | 2,222mm | ||
Floor Space | 3,290×2,204mm | ||
Machine Weight | 10,750kg | 10,900kg |
