Introducing the new Citizen Miyano ABX65THY CNC Fixed Head, the next-generation flagship model in the Miyano lineup. Engineered for precision, productivity, and operator efficiency, the ABX-65THY sets a new benchmark in high-performance multi-axis turning.
The ABX-65THY is equipped with the latest 19-inch touch-screen FANUC control, delivering a smarter, more intuitive user experience. The new interface streamlines setup, programming, and real-time monitoring, empowering operators to maximize throughput with ease and accuracy.

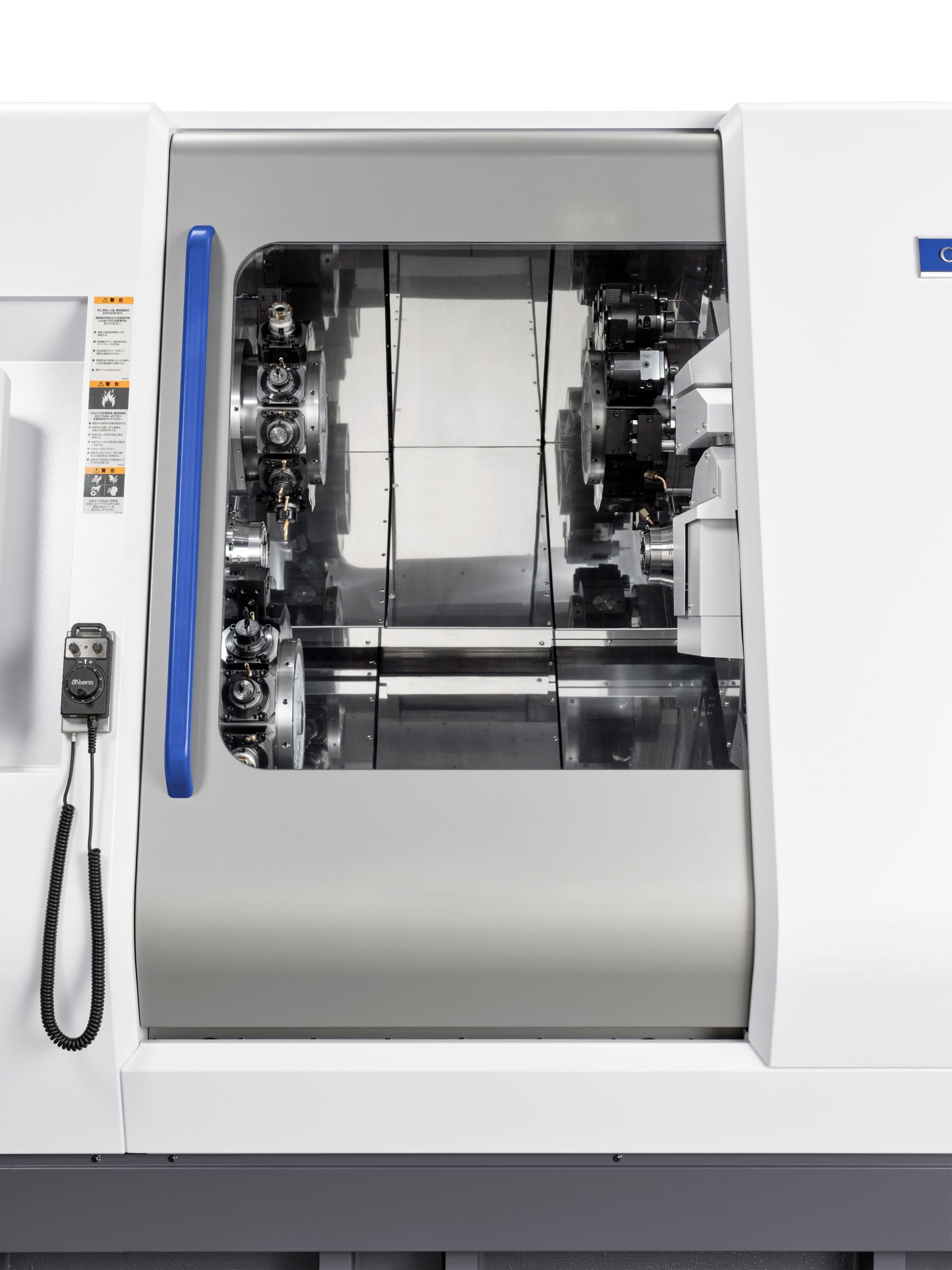

A redesigned large viewing window provides a clearer, wider view of machining operations, ensuring improved safety and operational confidence. The ergonomic layout enhances operator comfort and accessibility during tool setup and part verification.
Built with Citizen’s advanced Eco Balance technology, the ABX-65THY CNC Fixed Head minimizes environmental impact while maintaining peak performance. Power-saving systems and intelligent thermal management contribute to reduced energy consumption and longer machine life.
From automotive and aerospace to medical and precision engineering applications, the ABX-65THY embodies Citizen’s relentless pursuit of innovation, combining high-speed performance, superior finish quality, and sustainable design.
| Items | ABX-65THY | ||
|---|---|---|---|
| Maximum Machining Diameter of Bar Work | SP1/SP2 | 65mm | |
| Power Chuck | SP1/SP2 | 6″ hydraulic drive | |
| Distance Between Spindle End Faces | 1031mm | ||
| Spindle motor(30min./Cont.) | SP1 | 18.5/ 15 kW | |
| SP2 | 18.5/ 15 kW | ||
| Spindle Speed Range | SP1/SP2 | 5,000min-1 | |
| Type of Turret | 12St.Turret | ||
| Shank Height of Square Turning Tool | □20mm | ||
| Diameter of Drill Shank | ø40mm,ø25mm,ø20mm | ||
| Slide Stroke | X1,X2,X3 axis | 190mm | |
| Z1,Z3/Z2 axis | 270mm /550mm | ||
| Y1,Y2,Y3 axis | ±40mm | ||
| Maximum Number of Revolving Tools | 36 | ||
| Machine Height | 2,210mm | ||
| Floor Space | 3,260×2,200mm | ||
| Machine Weight | 11,300kg | ||
