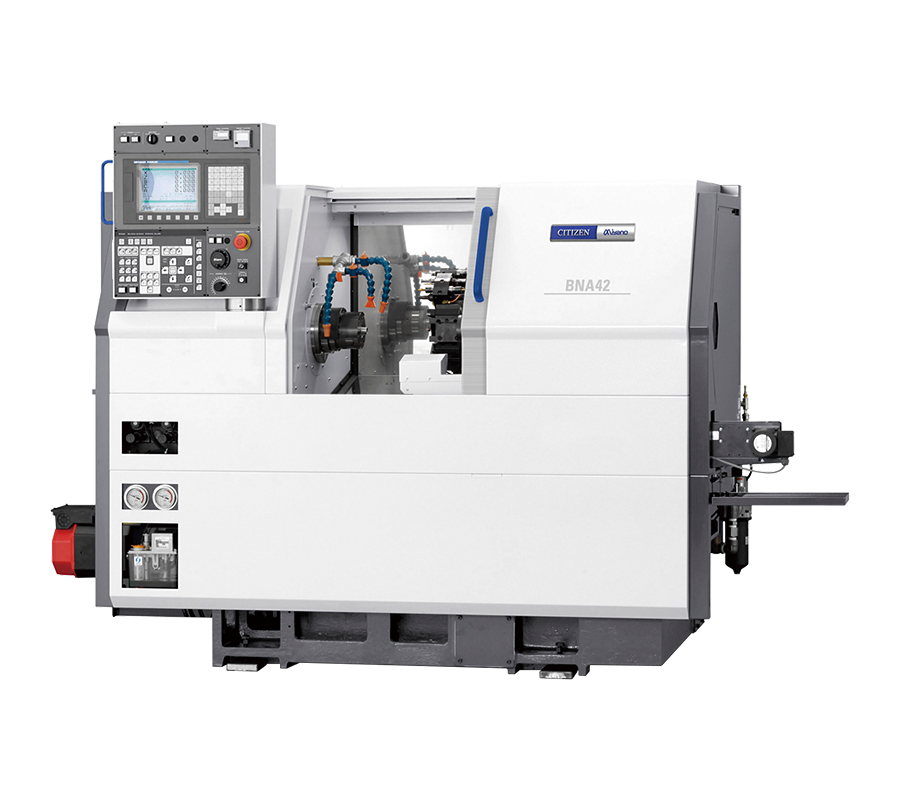

BNA-42S - Citizen Machinery | Citizen Machinery

Entry level value with back machining flexibility

Featuring 2 spindles and 1 turret, the entry-level BNA-42S offers excellent value for simpler requirements whilst offering back machining abilities over the BNA-42C model:

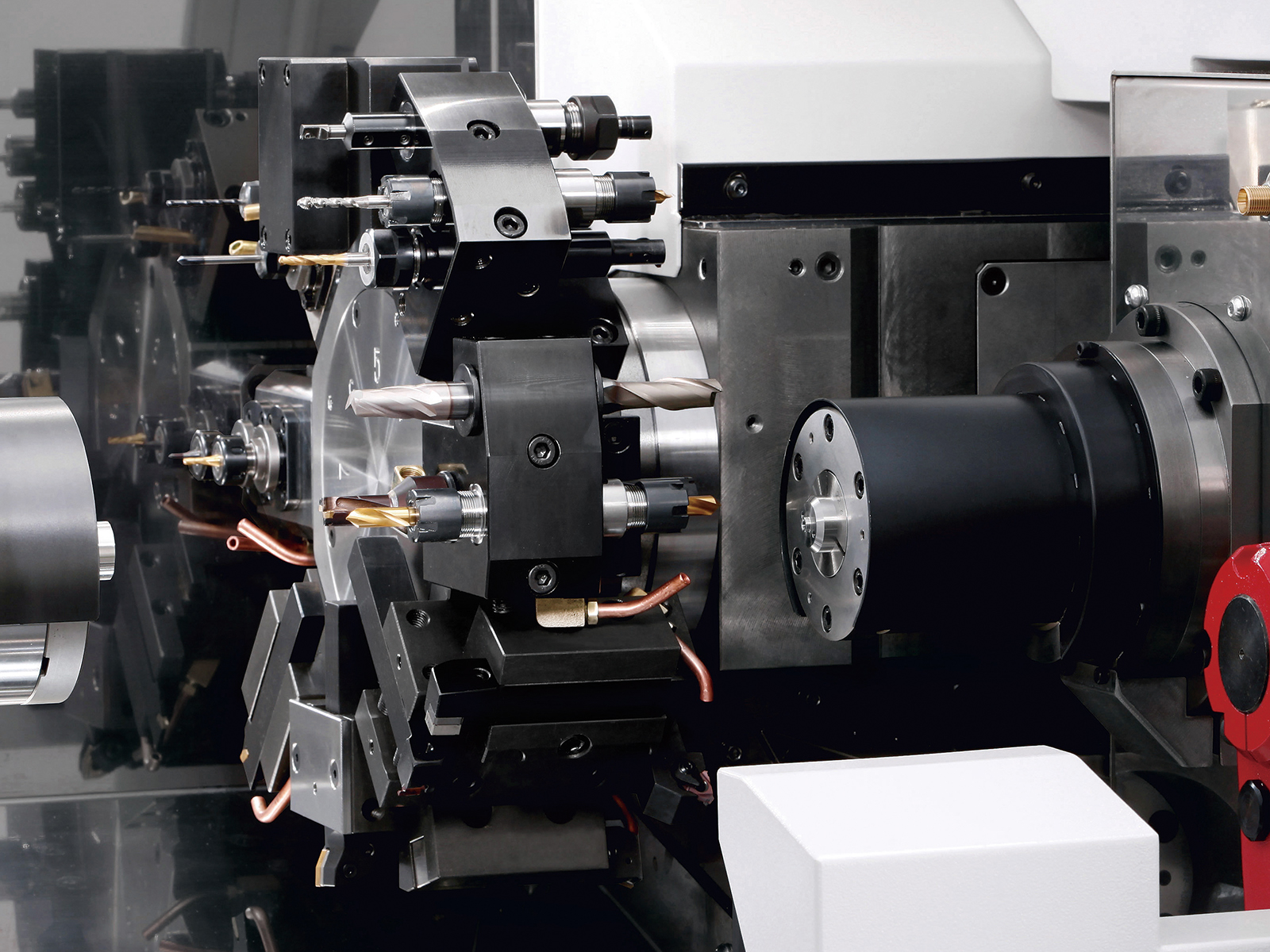

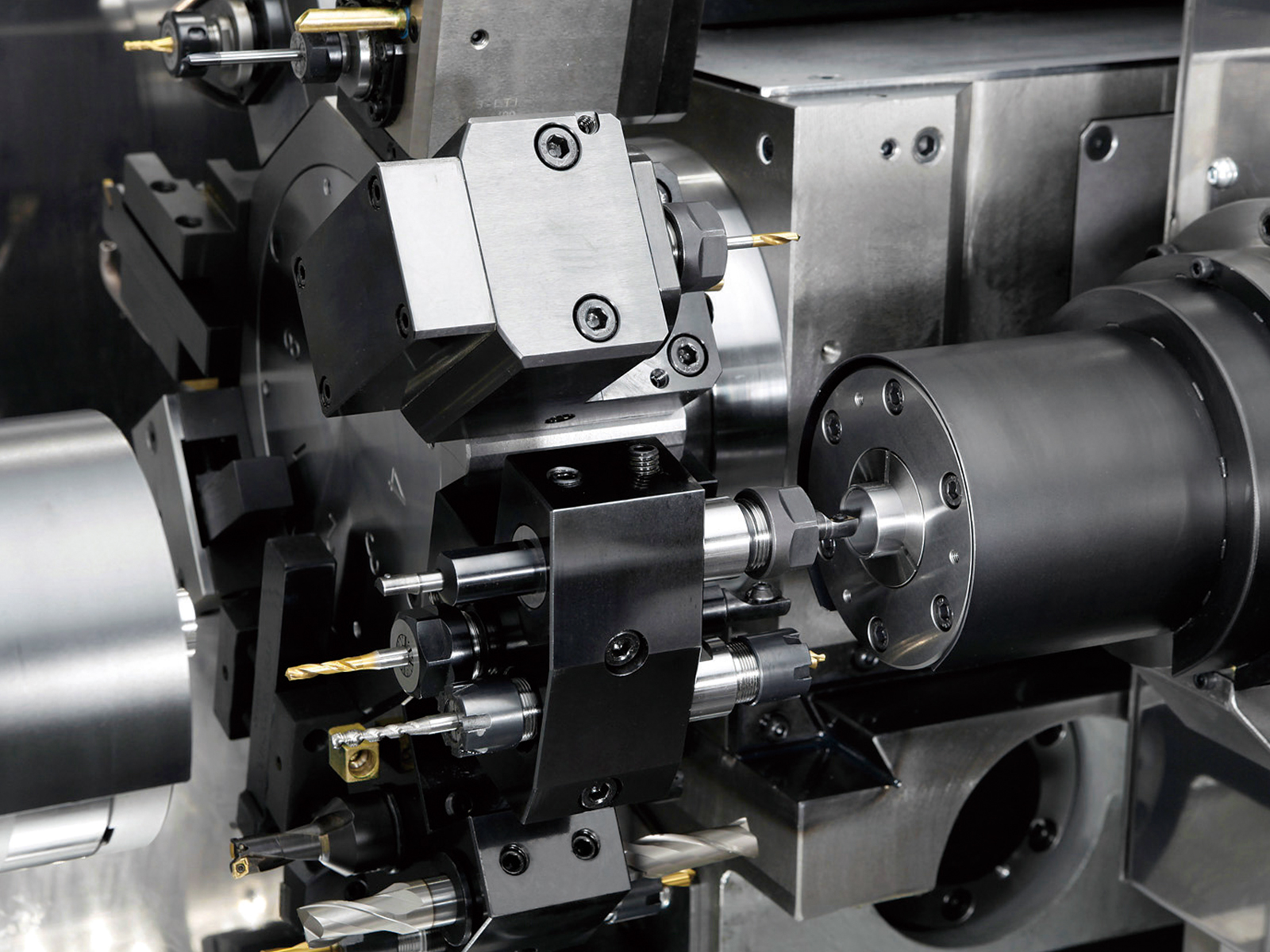

The turret features a half-indexing mechanism enabling 2 fixed tools to be mounted at each of the 8 positions.

All turret stations are driven (max 2.8kW, 5000rpm)

Compact footprint

Latest control system reduces idle time by 27% and machining time by 13% compared to previous model.

Machine Specification

Items		BNA-42S2
Maximum Machining Diameter of Bar Work	SP1/SP2	ø42mm/ø34mm
Maximum Machining Length		100mm
Power Chuck	SP1/SP2	5″/—
Spindle motor(15min./Cont.)	SP1	7.5/5.5kW
Spindle motor(15min./Cont.)	SP2	5.5/3.7kW
Spindle Speed Range	SP1	60 – 6,000min^-1
Spindle Speed Range	SP2	50 – 5,000min^-1
Type of Turret		8St.Turret
Shank Height of Square Turning Tool		□20mm
Diameter of Drill Shank		ø25mm
Slide Stroke	X axis	135mm
	Z axis	235mm
	B axis(Z2 axis)	310mm
Maximum Number of Revolving Tool		8
Floor Space		2,150×1,290mm
Machine Height		1,660mm
Machine Weight		2,800kg
