Fixed Head

Multi-purpose midsize CNC turning 64mm bar capacity, 2 spindles and 1 turret with Y-Axis.

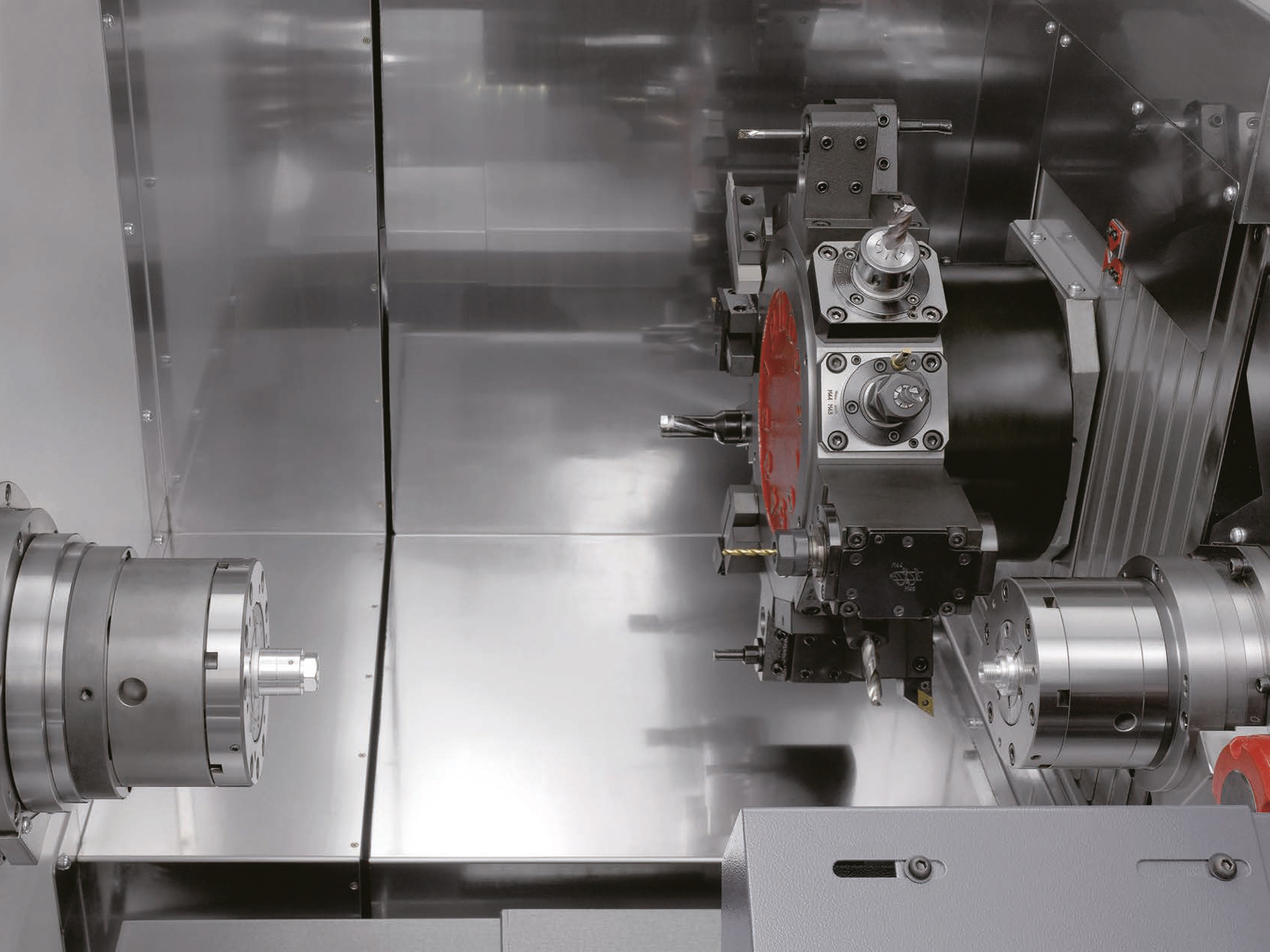

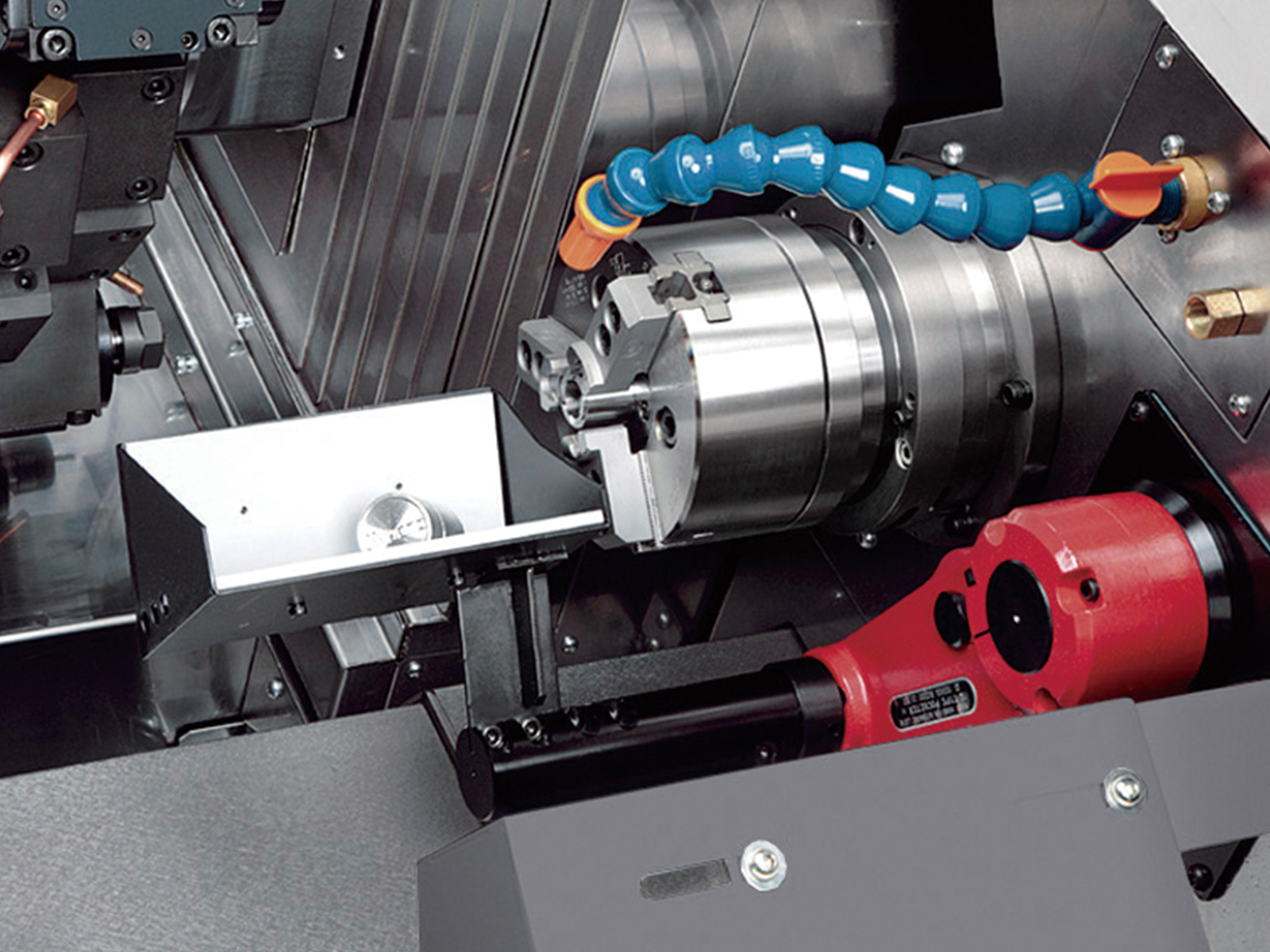

We introduce a new bar machine equipped with a subspindle and a Y axis that can machine bar material up to 64mm.
The structure of the machine, consisting of precision scraped square guideways that provide high rigidity and excellent vibration damping characteristics and a heavy 30° slanted bed of a platform construction with appropriately arranged ribs ensuring good thermal stability and minimum dimensional changes over time, realizes consistent high machining accuracy.

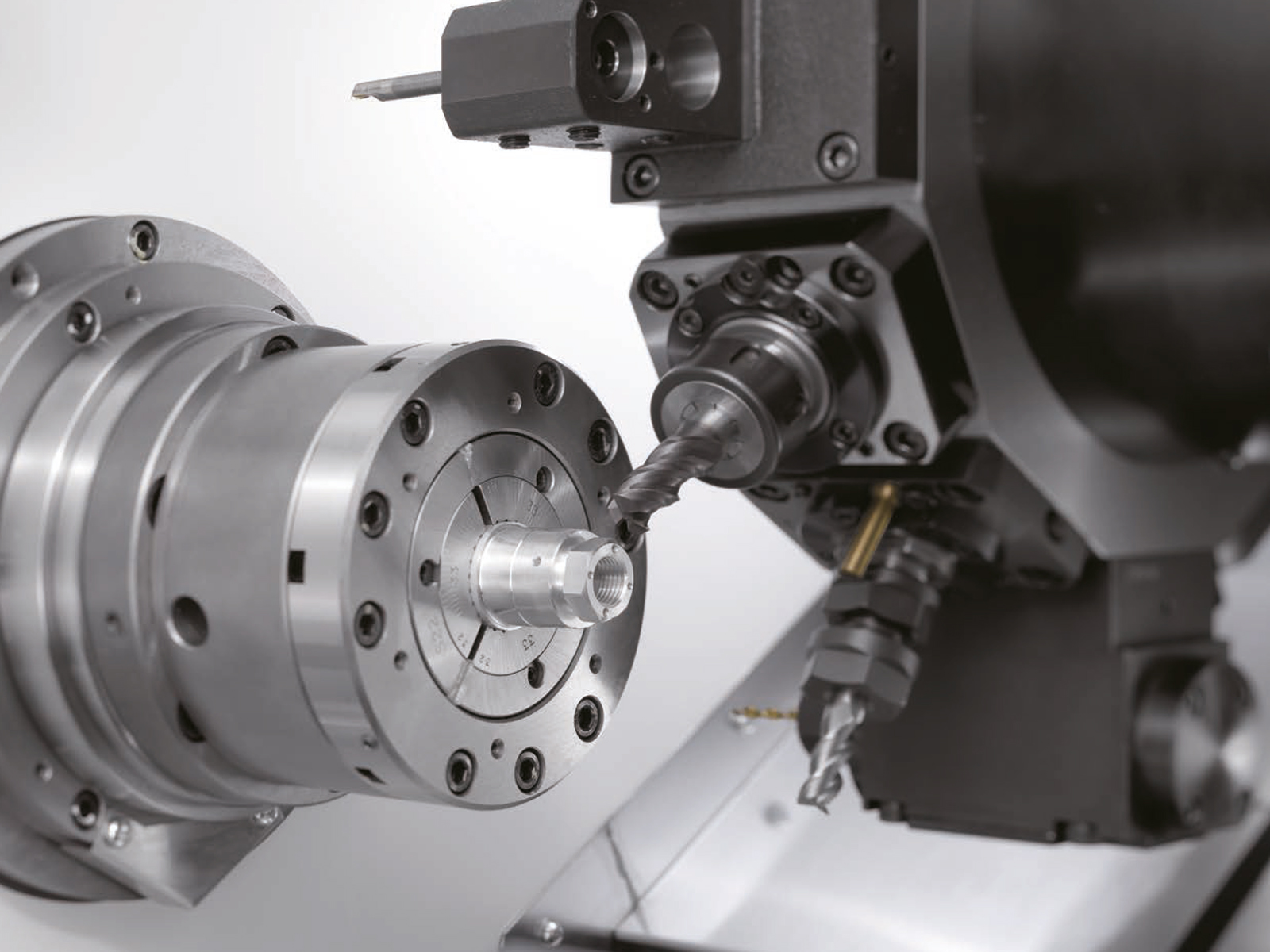

  • Y-axis function is more capable for complex high-value parts.
  • Mono black slant bed and square slide for efficient chip flow and high accuracy.

ItemsBND-51SY2BND-64
Maximum Machining Diameter of Bar Workø51mmø64mm
Maximum Machining LengthBar320mm320mm
Type of Turret12St.Turret12St.Turret
Slide StrokeX axis175mm175mm
Z axis435mm435mm
Y axis+40mm/-35mm+40mm/-35mm
B axis530mm530mm
Shank Height of Square Turning Tool□20mm□20mm
Tool hole diameterø25mmø25mm
Maximum Number of Revolving Tool1212
Main spindle speed range50 – 5,000min-150 – 5,000min-1
Spindle motor(30min./Cont.)15/11kW15/11kW
Machine WeightApprox.4,500kg4,500kg
