D25/32-VII / D25/32-VIII, Citizen Machinery CNC Lathes

D25/32-VII / D25/32-VIII - Citizen Machinery

D25/32-VII / D25/32-VIII LFV Technology
Sliding Head LFV Technology

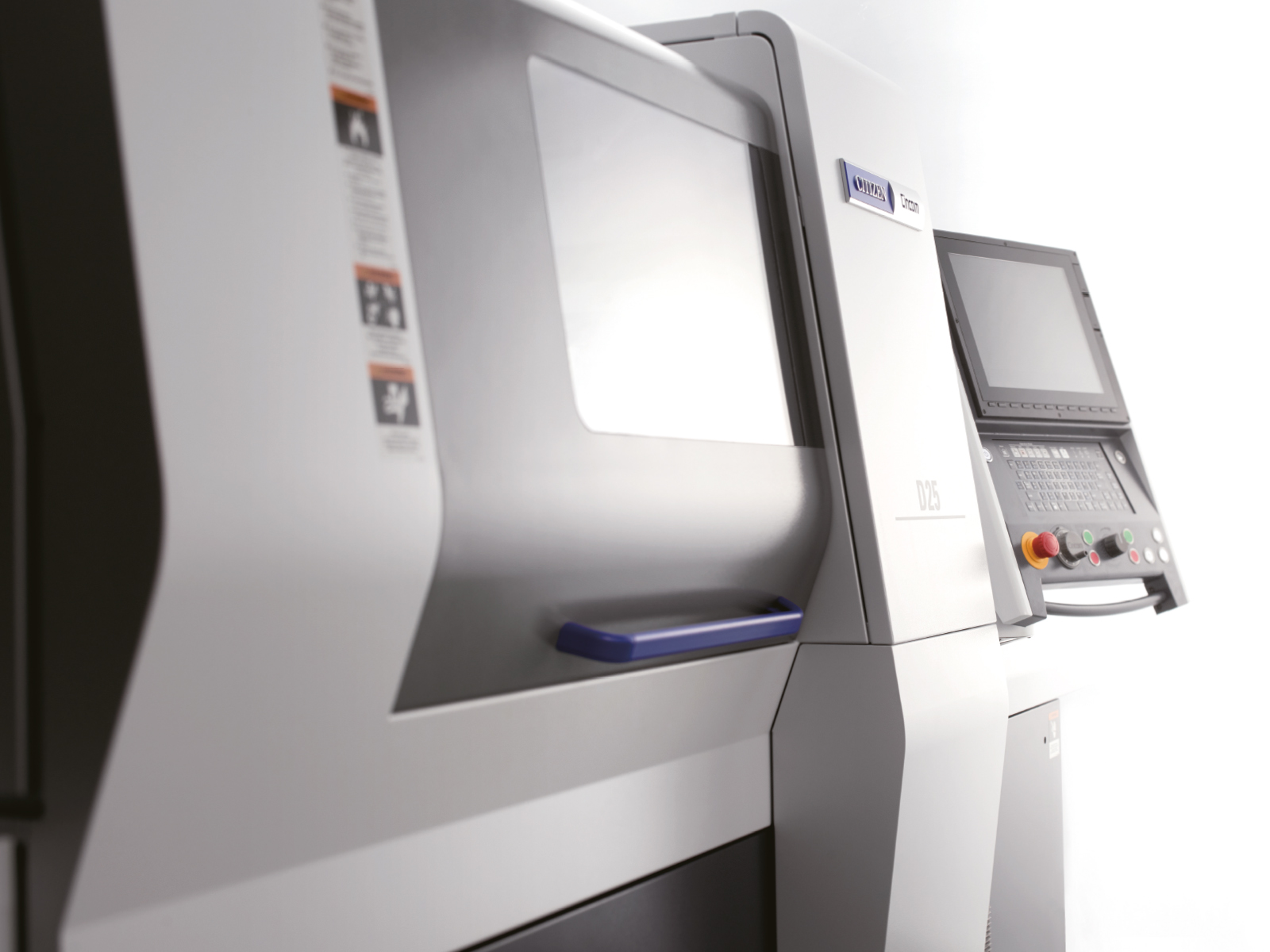

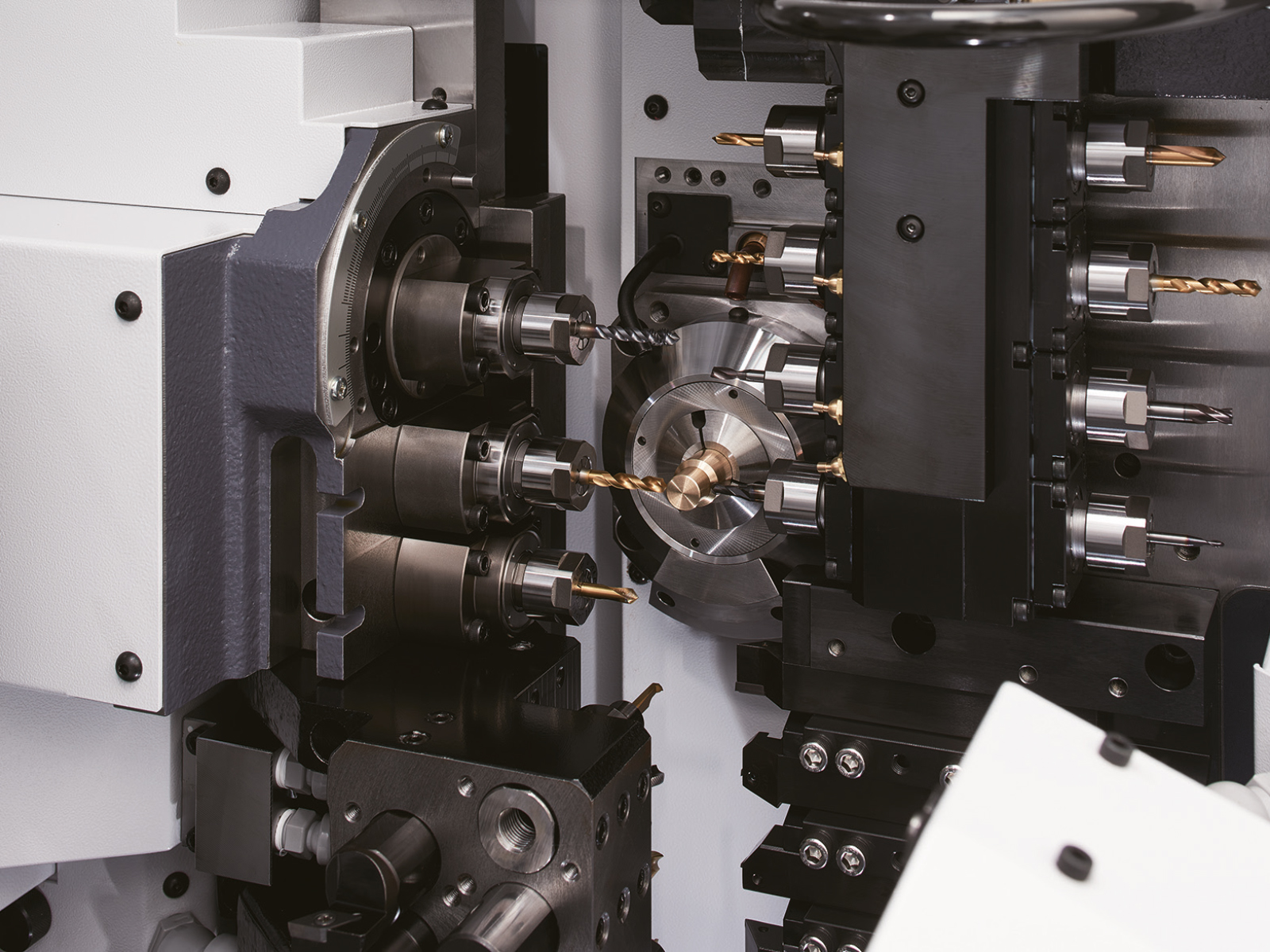

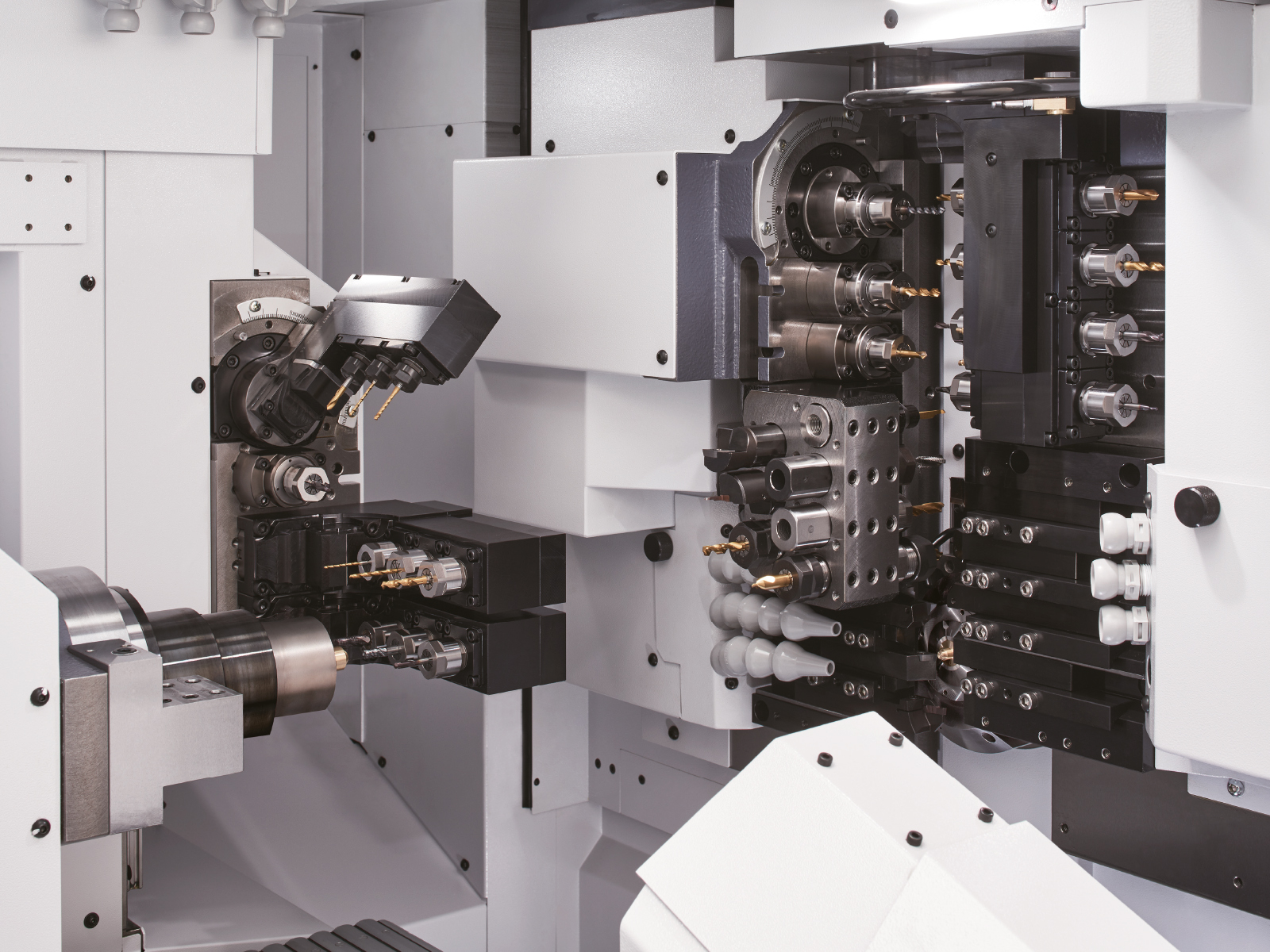

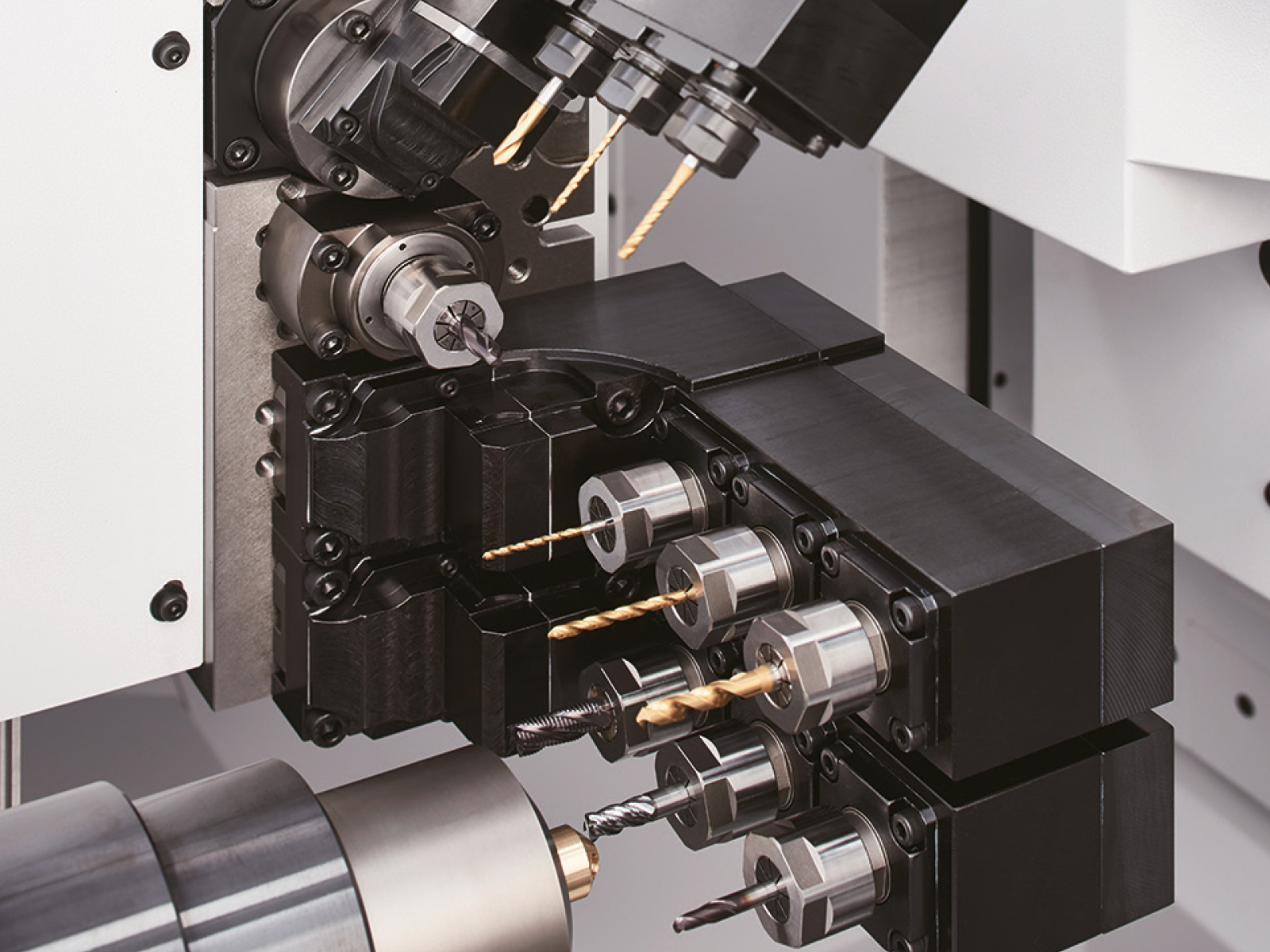

Introducing Citizen’s newest development, the D25, equipped with double gang tool posts and B axis. The double gang layout enables short cycle times for high productivity at low part cost. The large number of tools, for both main and sub spindle, gives cost effective production of complex workpieces.

  • Next generation CNC system with touch screen and qwerty keyboard. Easy set up with on screen graphical prompts. Ready
    for ‘internet of things’.
  • 3 x Y axis, 3 x Z axis.
  • B axis for front-back machining.
  • Independent adjustable angle rotary tools to sub spindle.
  • Power and speed: 5.5kW and 10,000 rpm.
  • Up to 59 tools.
  • With/without guide bush – switchable operation.
PDF Icon Download the Brochure

ItemD25
Max. machining diameter (D)32mm (option)
Fixed guide bushing250 mm
Guide bushing less2.5 D
Spindle speedMax. 10,000 min-1
Spindle speed of the gang rotary toolMax. 9,000 min-1
Max. chuck diameter of back spindle25 mm dia.
Max. protrusion length of the back spindle workpiece50 mm
Back spindle speedMax. 10,000 min-1
Number of tools to be mounted43
Tool (gang)16 mm sq. , 19 mm sq.
Sleeve25.4 mm dia.
Z224 m/ min
Others32 m/ min
for spindle drive3.7/ 5.5 kW
for rotary tool on the gang tool post2.2 kW
for back spindle drive2.2/ 3.7 kW
Back tool post rotary drive1.0 kW
Rated power consumption13.2 kVA
Centre height1,050 mm
Weight3,450 kg
