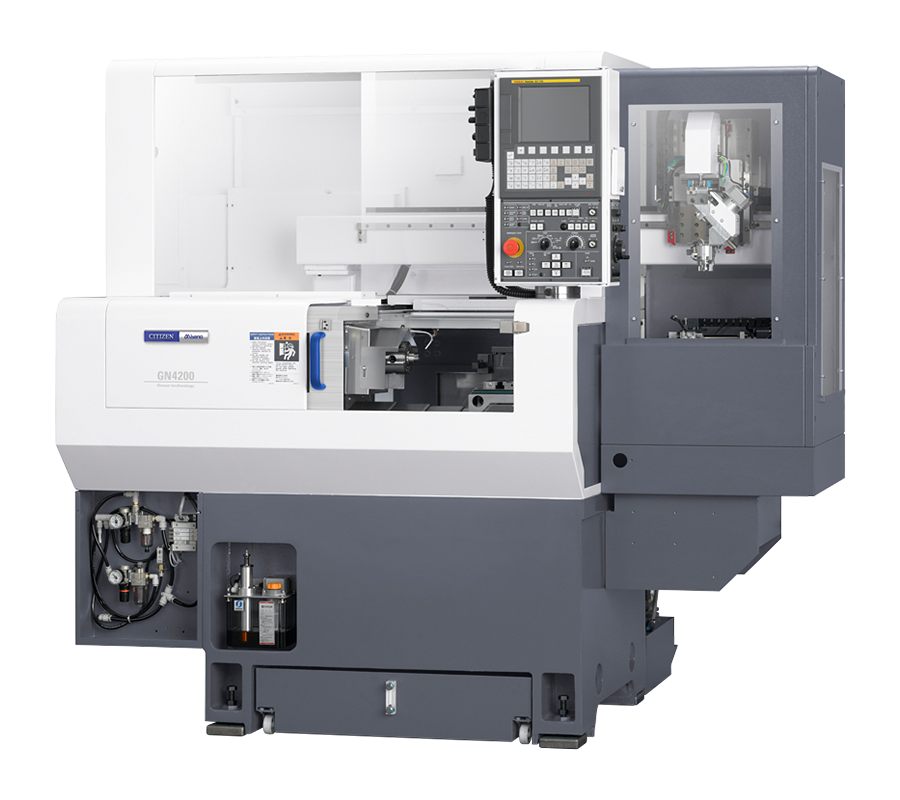

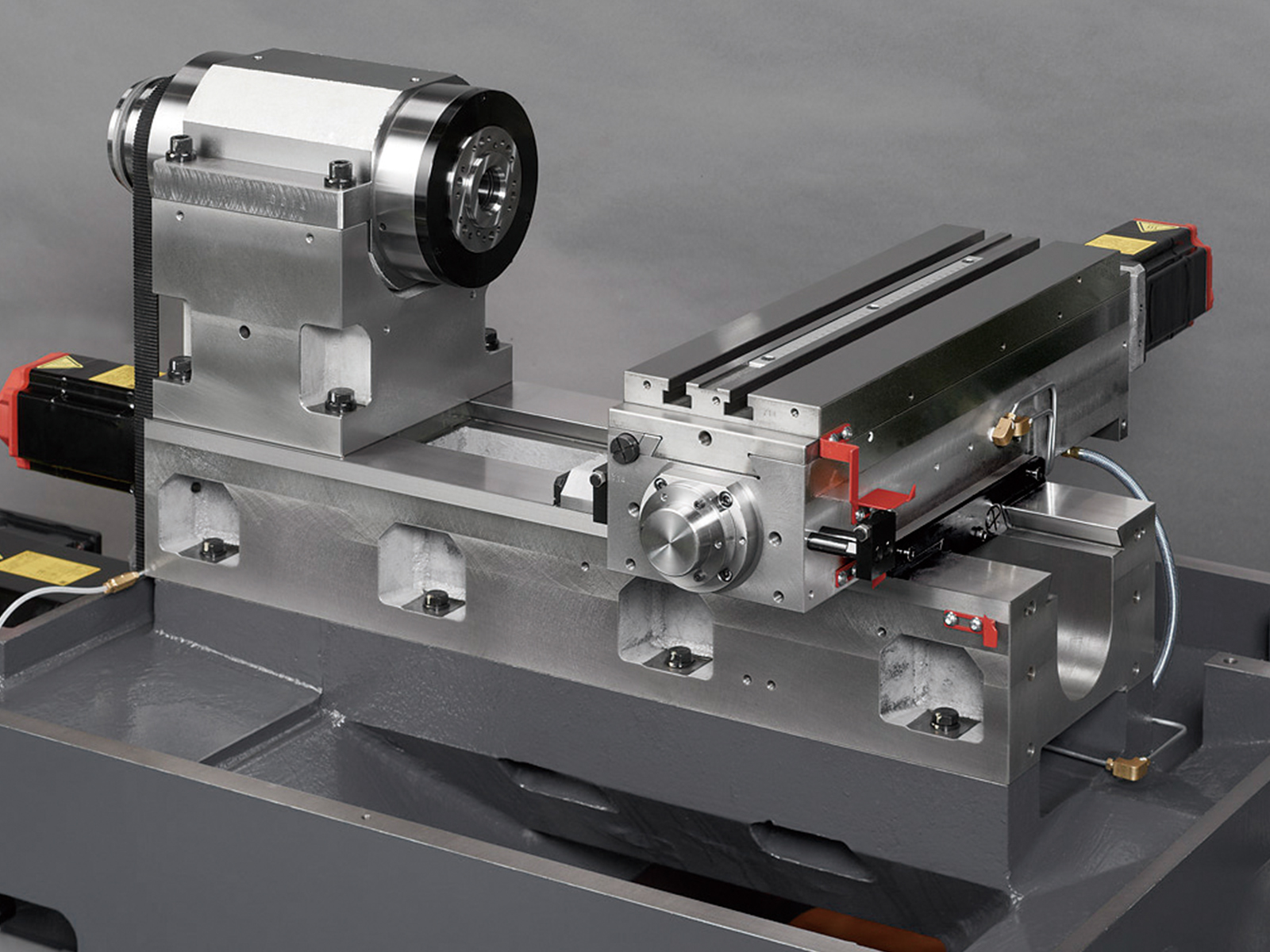

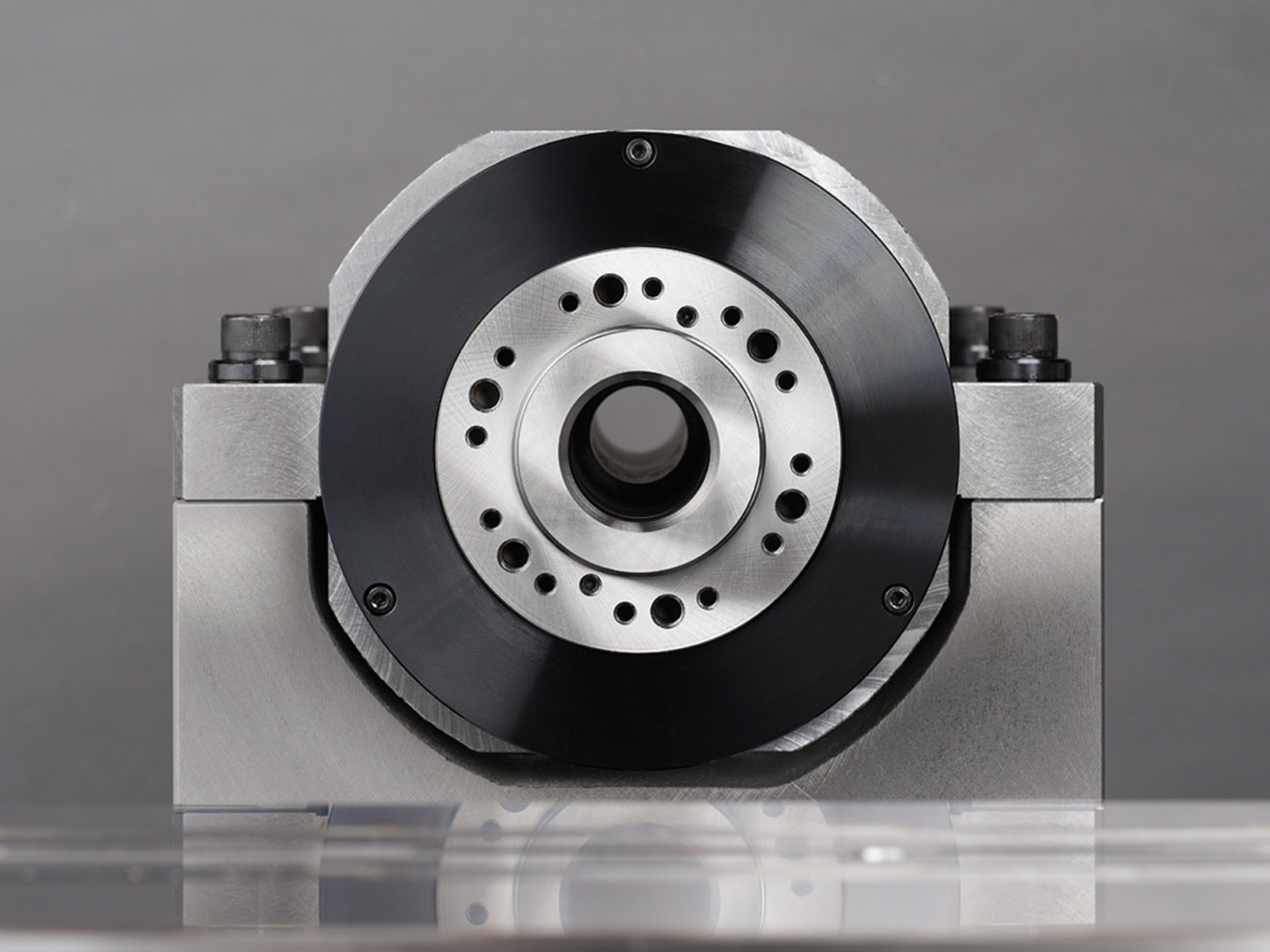

Designed for high-precision machining of small-diameter work pieces, this machine has a wing type fixed spindle for low thermal influence installed on a thermally symmetrical machine base. It inherits the “design concept for high precision” that is a tradition at Ocean Cincom.

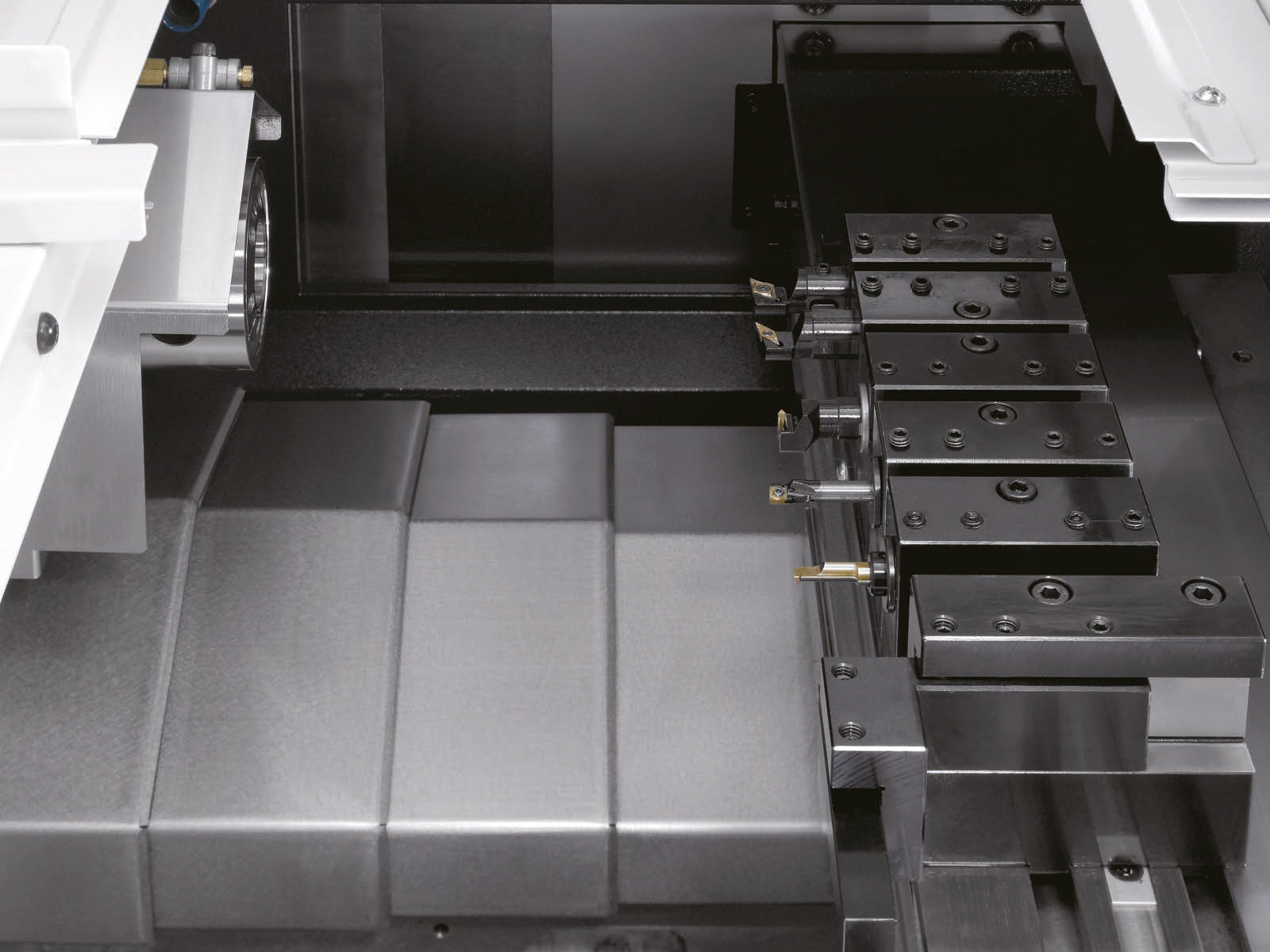

Combined with slideways with excellent damping characteristics finished by highly skilled masters of the art of scraping, this construction ensures outstanding machining accuracy in dimension and in roundness.

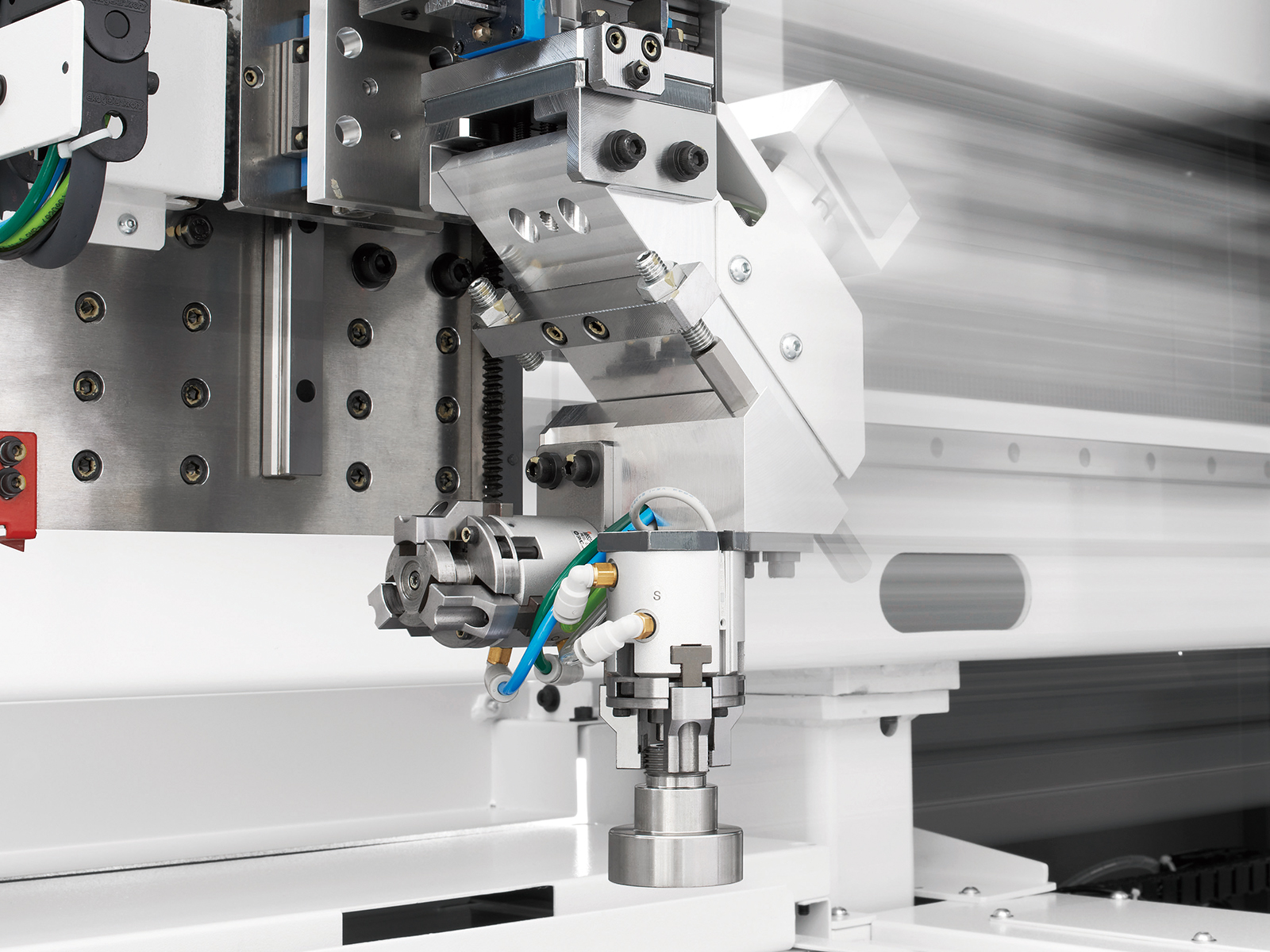

The work pieces can of course be handled manually, but the machine also flexibly accommodates automation including high-speed gantry loaders and robots. This makes high-precision machining even more efficient.
| Items | GN-4200 | |
|---|---|---|
| Machining Capacity and Chuck System | ||
| Maximum Diameter of Collet Chuck | Fine Precision Air Chuck | ø45mm |
| Pull Type Collet Chuck | ø40mm(Stationaryø35mm) | |
| Maximum Machining Length | 80mm | |
| Spindle | ||
| Spindle motor | 15min./cont. | 5.5/3.7kW |
| Main spindle speed range | 8,000min-1 | |
| Slide | ||
| Type of Turret | Hrizontal Linear Turret | |
| Type of Side | X axis | Dovetail |
| Z axis | Dovetail | |
| Slide Stroke | X axis | 300mm |
| Z axis | 250mm | |
| Machine Dimensions | ||
| Machine Height | 1,695mm | |
| Floor Space | W1,350mm×D1,325mm | |
| Machine Weight | 1,500kg | |
| Optional | ||
|---|---|---|
| Loader Specifications | ||
| Type of Loader | 2-Axes Gantry Loader(2Hands) | |
| Maximum Workpiece Size | ø40 × 40mm | |
| Maximum Workpiece Weight | 250g | |
| Control System | PMC Axis Control | |
| Control Soft | Flexible Loader Control | |
| Drive System | Right and Left Operation | Rack & Pinion |
| Upper and Lower Sides | Rack & Pinion | |
