Citizen LFV Cutting Technology – Reduced Chip Sizes

In 2016 a spark of ingenuity led to the launch of Citizen’s LFV (Low Frequency Vibration) the programmable chip control technology quickly became the No.1 advanced cnc turning solution for revolutionising productivity – paving the way for total automation and a fully-functional lights out manufacturing operation.

How does it do it?

The slide axis oscillation is fully synchronised with the spindle rotation – the vibration ensures that only short, neatly broken swarf chips are formed – no more tangled chips! This enables you to work for longer because less cleaning and maintenance is required – machine through the night with unattended operation, increasing your profits!

The technology is highly versatile giving you stronger machining capability – its three modes: turning, grooving and threading helping you achieve more!

“When we go home…the only machines still running are the Citizens” #CitizenStory

Lowered cutting resistance
No built-up edges are formed
Makes light work of difficult to machine materials
Low machining temperature – reducing or removing the need for high pressure coolants
No machining temperature rise – far less susceptible to distortion
Extended tool life
Very fine cuts are possible

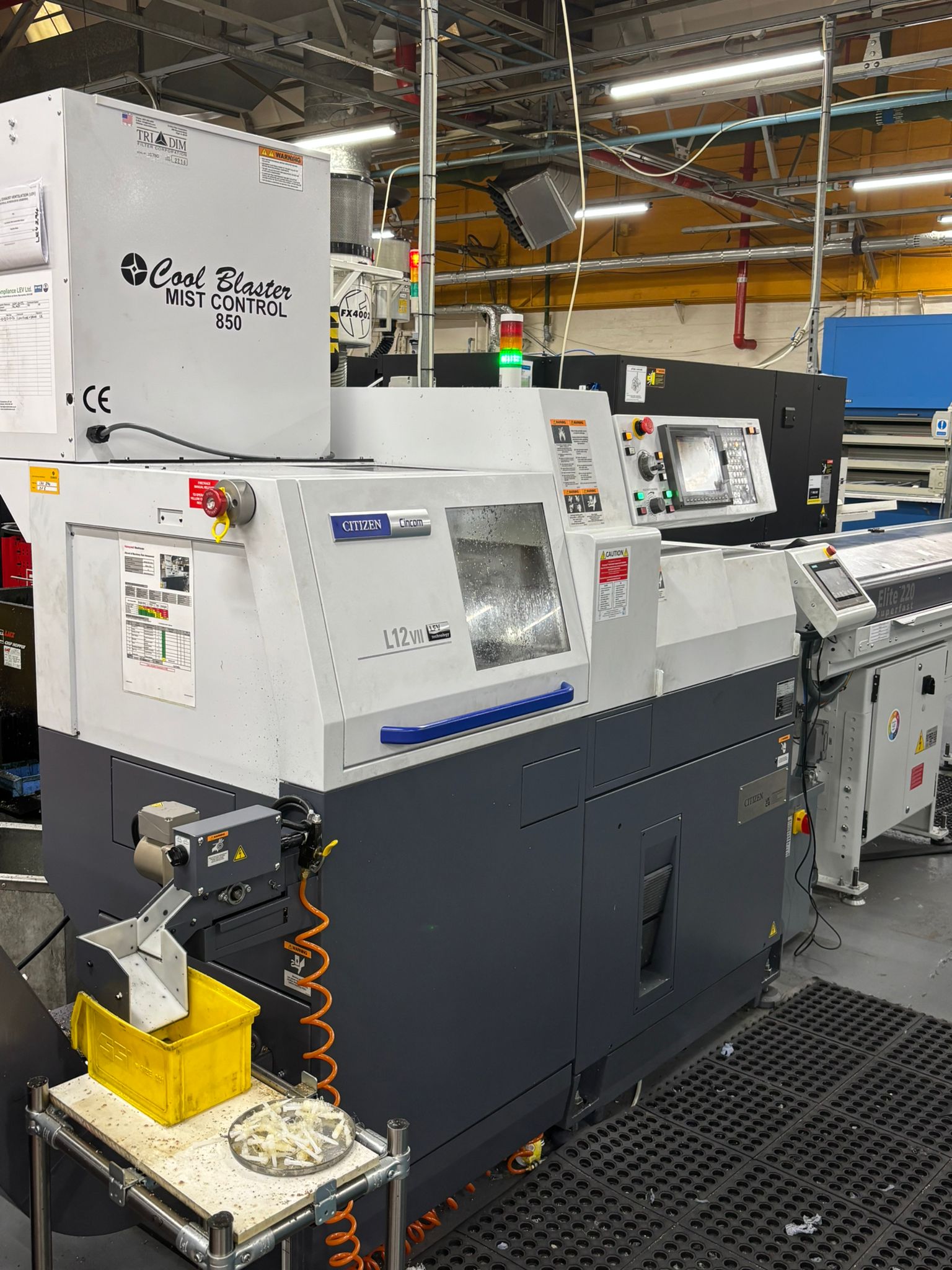

L12-VII / X

Handling All Small-diameter Work with 7-axis Control The option to switch between Guide Bush Mode (Maximum speed of 15,000 min-1) and Non-Guide Bush mode (Maximum speed of 12,000 min-1) as…

Discover

M16-V / VIII

The M16: A High-end Model Covering 16mm The M16: A high-end model covering ø16 mm. The B axis function of rotary tools on the gang tool post and the back…

Discover

A20-VII

The Citizen A20, an evolving 5-Axis CNC sliding head machine, furthers the quest for cost and performance, featuring the ability to switch between guide bush and non-guide bush types.

Discover

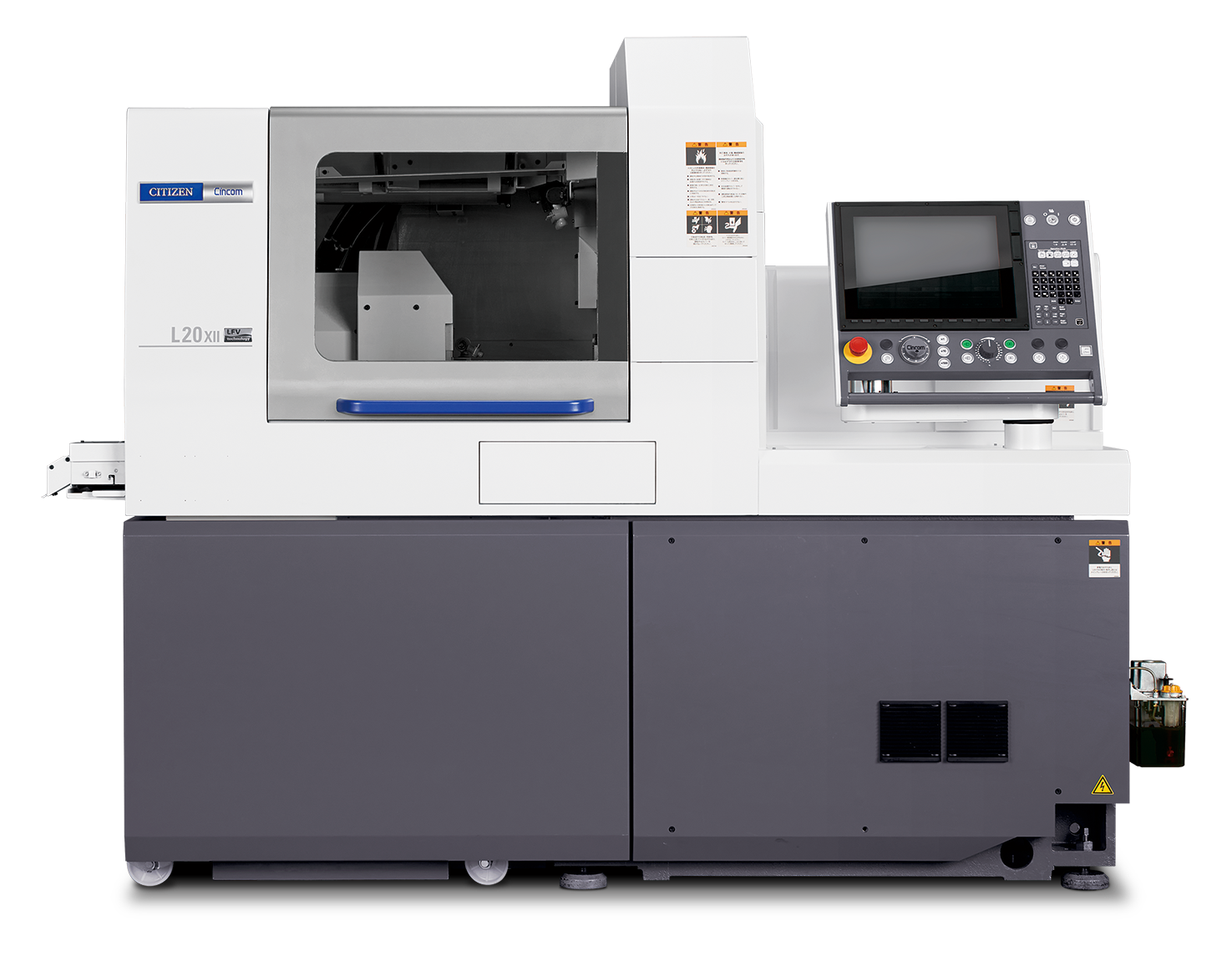

L20-VIII / X / XII B5 / XII ATC

L20-VIII / X / XII B5 / XII ATC Full Model Range Upgrade For The Cincom L20 CNC Sliding head The full model range includes the L20 Type VIII, X,…

Discover

D25-VII / VIII

Introducing one of Citizen’s advanced developments, the D25, equipped with double gang tool posts and B axis. The double gang layout enables short cycle times for high productivity at low…

Discover

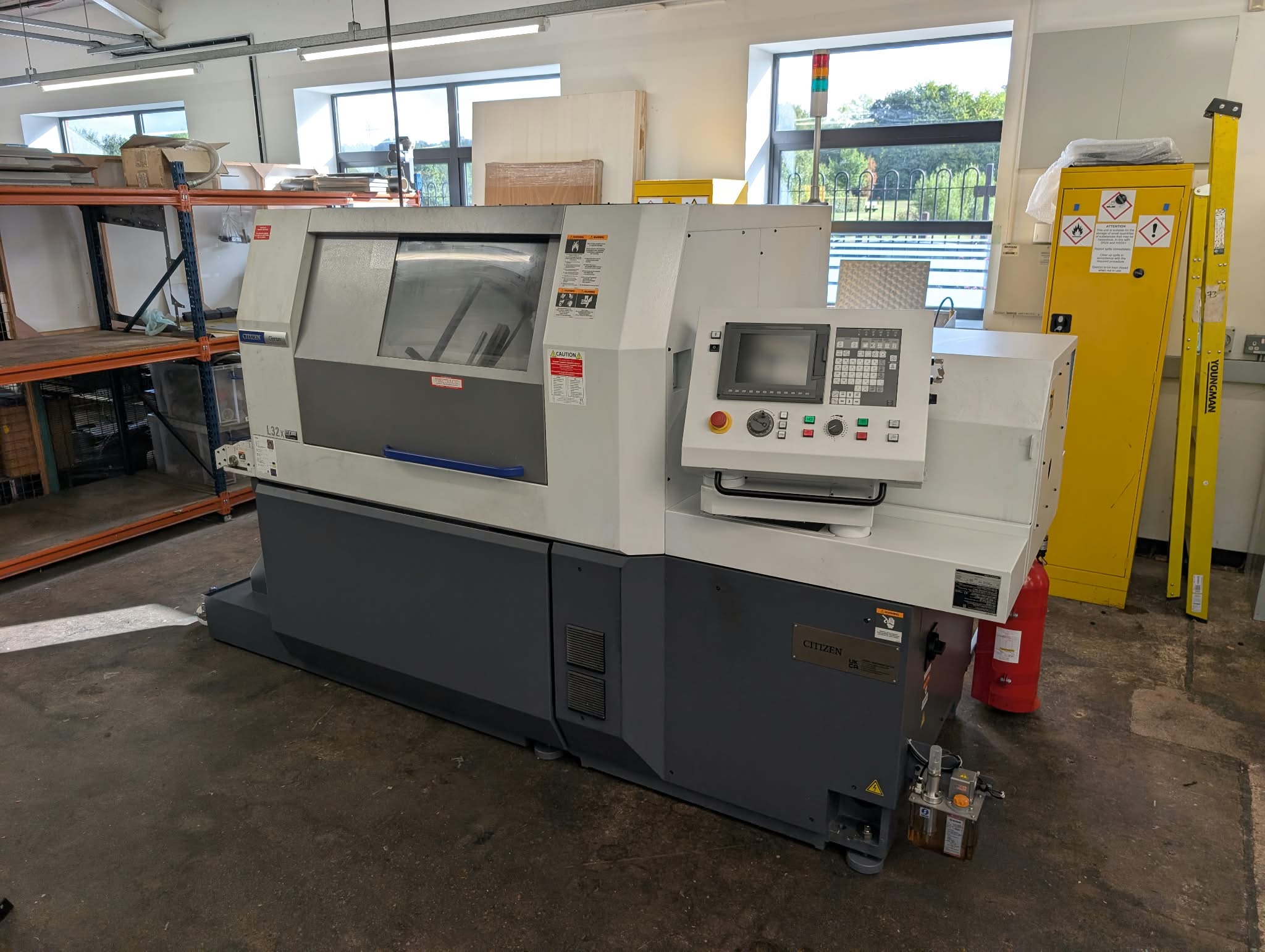

L32-VIII / X / XII / XII ATC

The new L32, an ‘icon’ reinvented. With a legacy as one of the best-selling Cincom machines, the next-generation L32 is launched with 4 models in modular design. With the current…

Discover

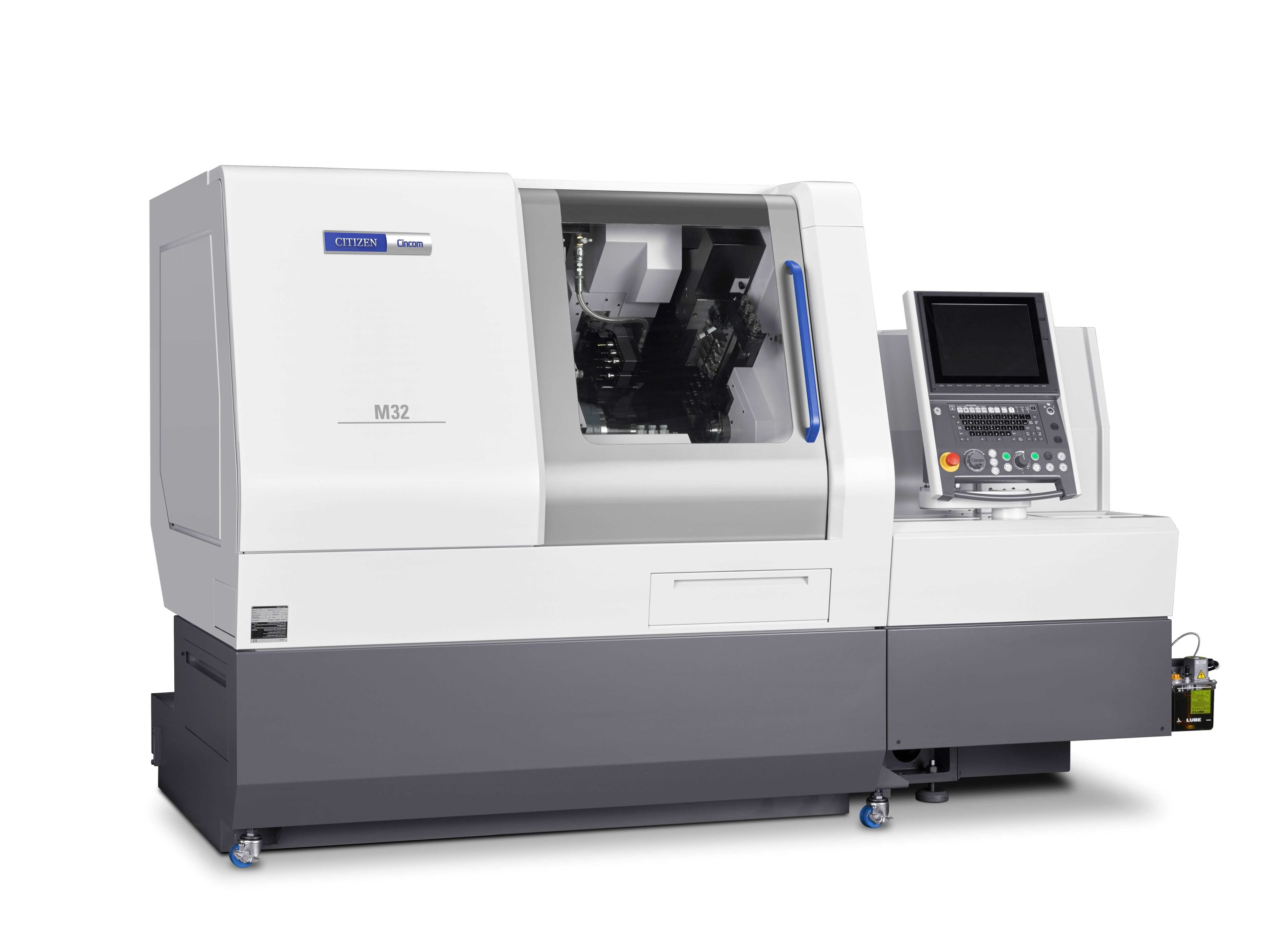

M32-V / VIII

Ultimate Gang + Turret: The M32-VIII is reborn With the adoption of newly designed covers to provide improved access, as well as a new HMI operating panel for the new…

Discover

BNA-42SY / CY5

Two BNA Series models with improved basic functions A surface plate structure, a tradition of the Miyano brand, has been carried over for the bed, an essential element for machining,…

Discover

BNA-42GTY

The high speed of gang tools is added to the diversity of the turret, opening up a wide range of machining possibilities. Featuring 2 spindles, Y-axis equipped turret and flexible…

Discover

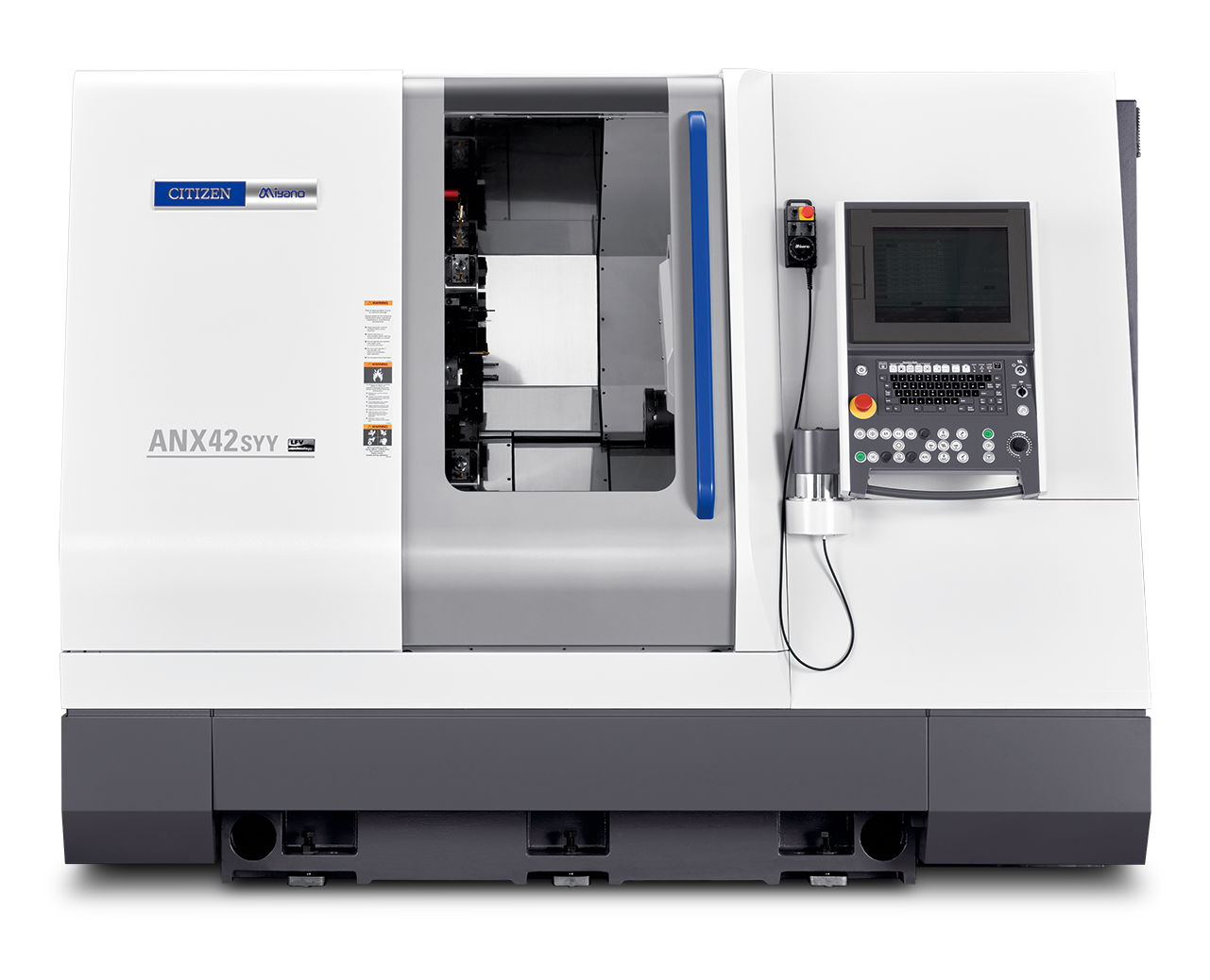

ANX-42SYY

Innovative mill-turn centre ANX opens up a new era. The latest model ANX features functions that open up a new era for mill-turn centres. Now a fixed head lathe from…

Discover

BNX-51/65 MSY

Fixed Headstock Type CNC Automatic Lathe. Single-turret Machine that Excels at Superimposition Machining Although the machine is simply configured with two spindles and one turret, it is capable of superimposition…

Discover

VC03

Opening Up New Possibilities in Machining Technology with Low Frequency Vibration-cutting Having realised the innovative machining technology of “low frequency vibration cutting”, which is completely different from conventional ultrasonic vibration…

Discover
