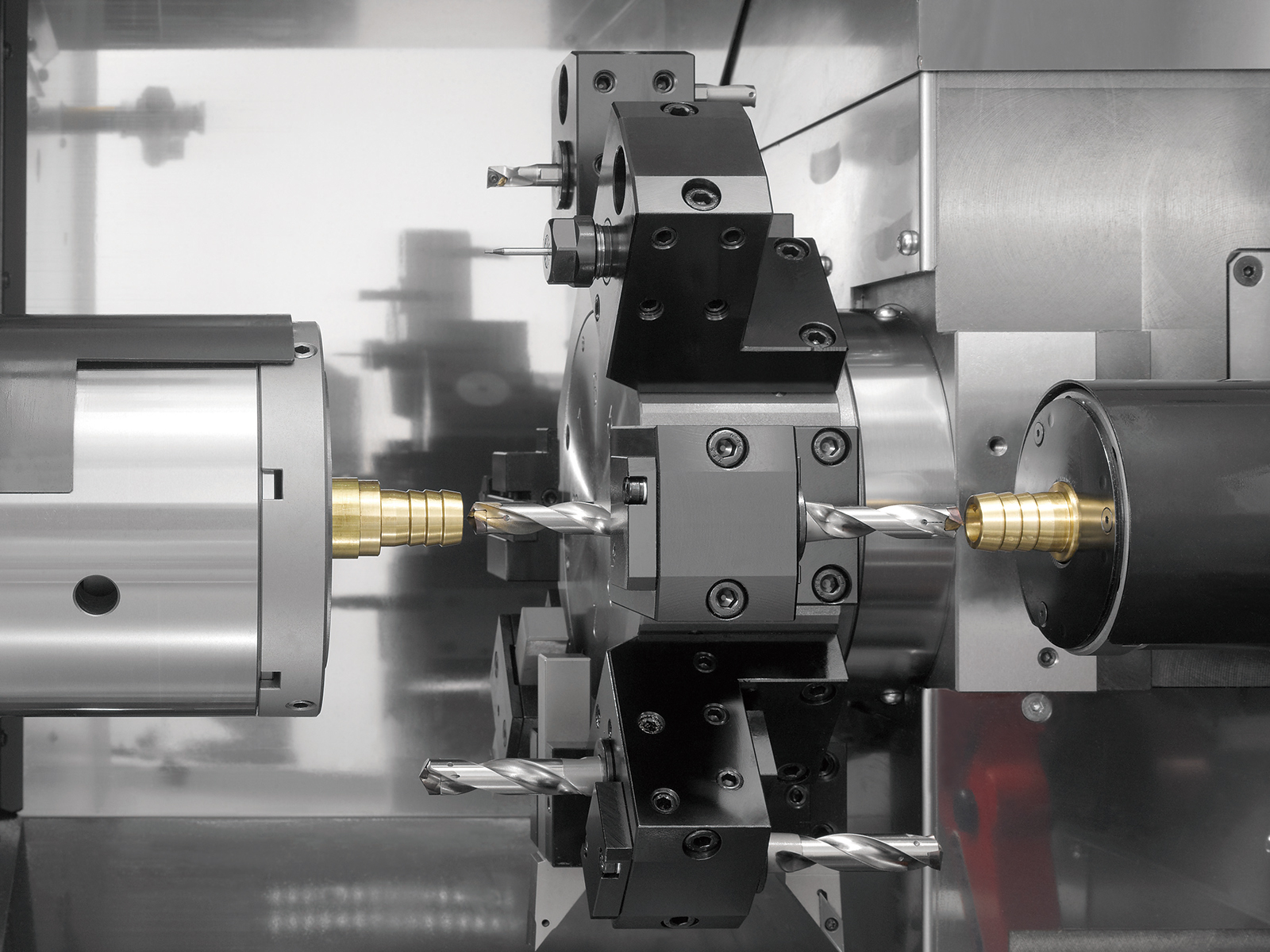

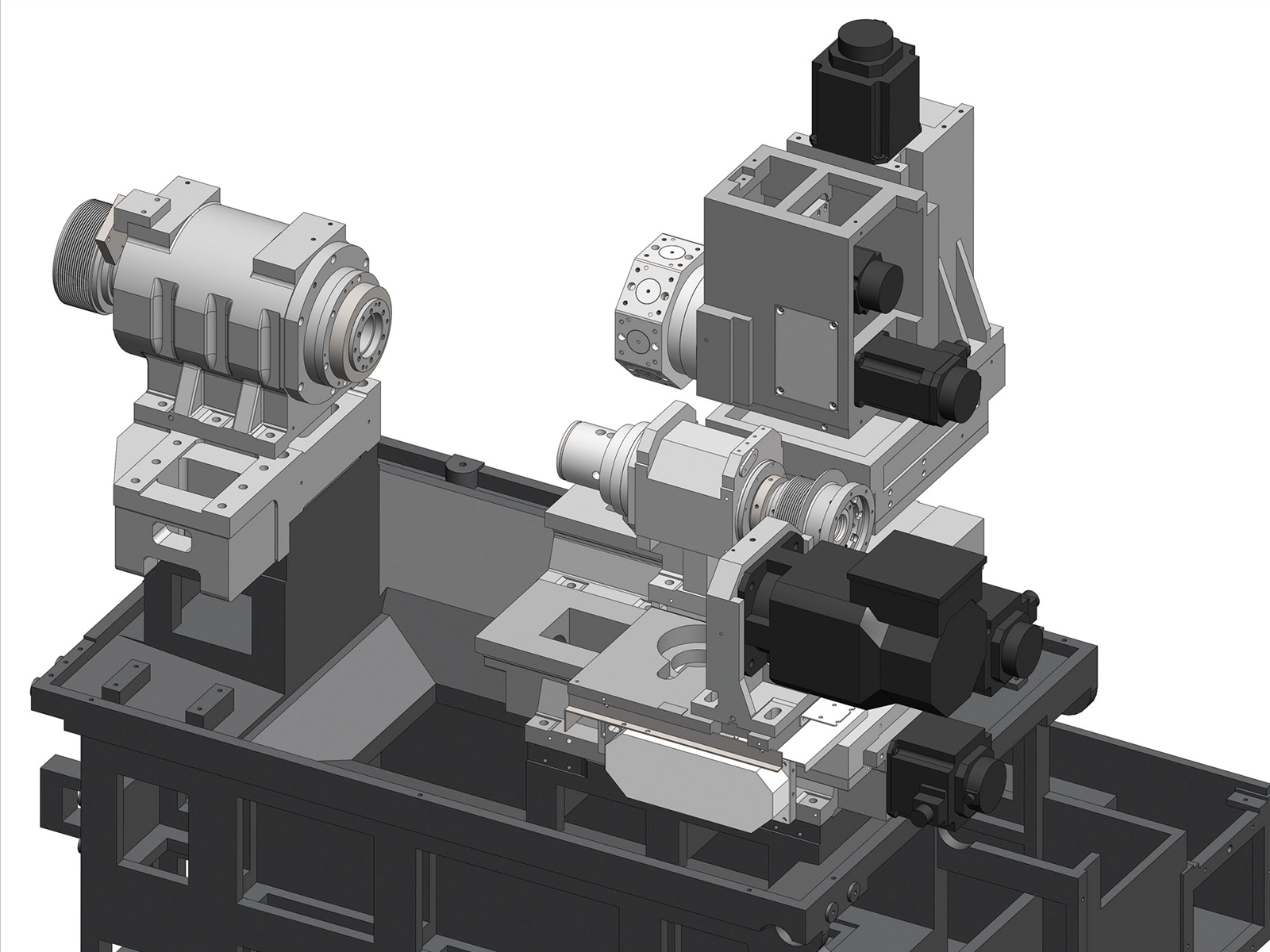

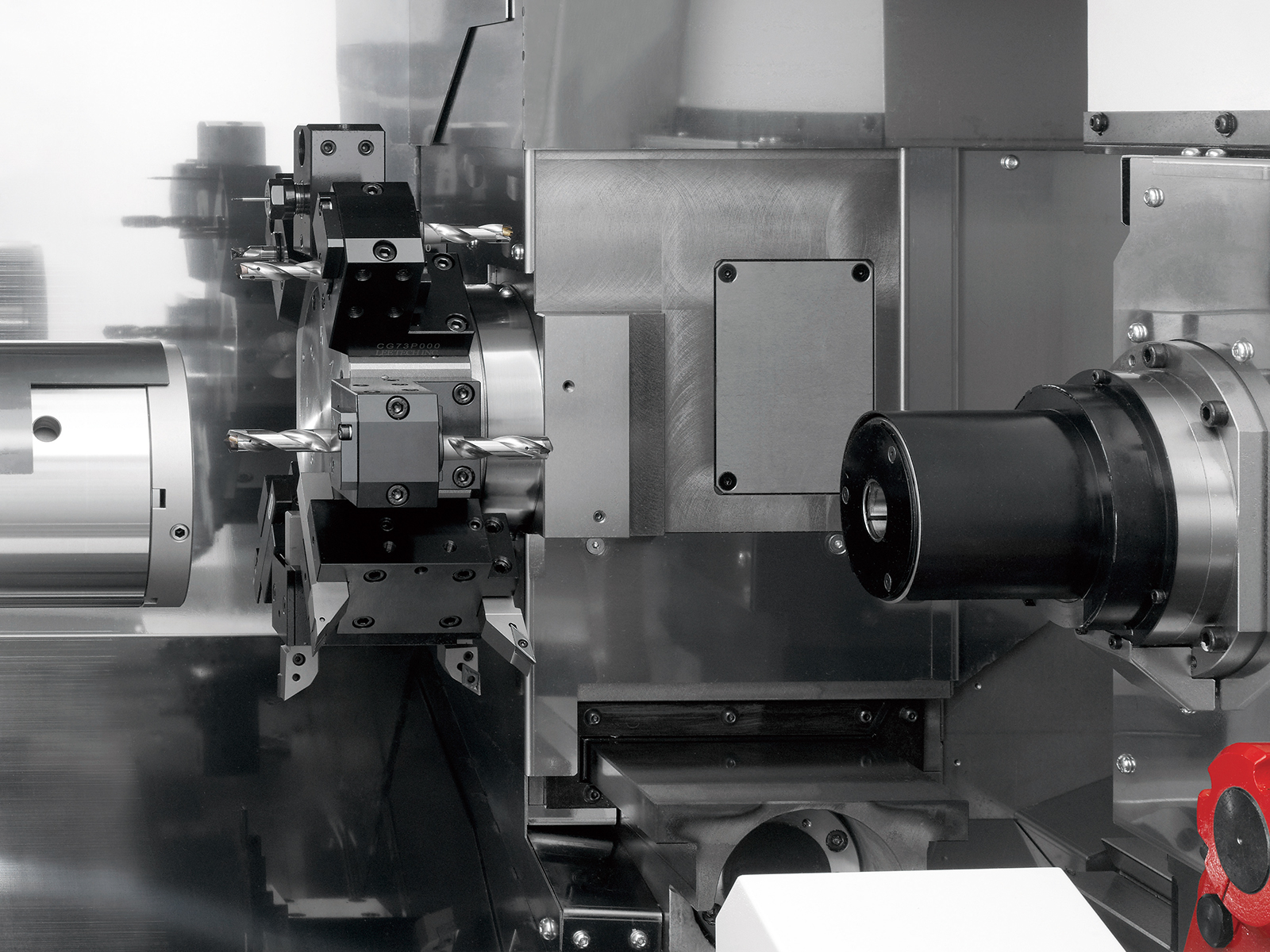

Configured with two spindles and one turret and equipped with a Y axis and X2 axis, the BNA42MSY is able to handle complex machining, with short cycle times and fast set ups.
The X2 axis to sub-spindle enables simultaneous independent machining of the front and back of the work-piece. This, in effect, provides the benefits of a twin turret machine with the significant cost savings of a single turret model.
Items | BNA-42MSY2 | |
---|---|---|
Maximum Machining Diameter of Bar Work | SP1 | ø42mm |
SP2 | ø34mm | |
Maximum Machining Length | 100mm | |
Spindle motor(15min./Cont.) | SP1 | 11/7.5kW |
SP2 | 5.5/3.7kW | |
Spindle speed | SP1 | 6,000min-1 |
SP2 | 5,000min-1 | |

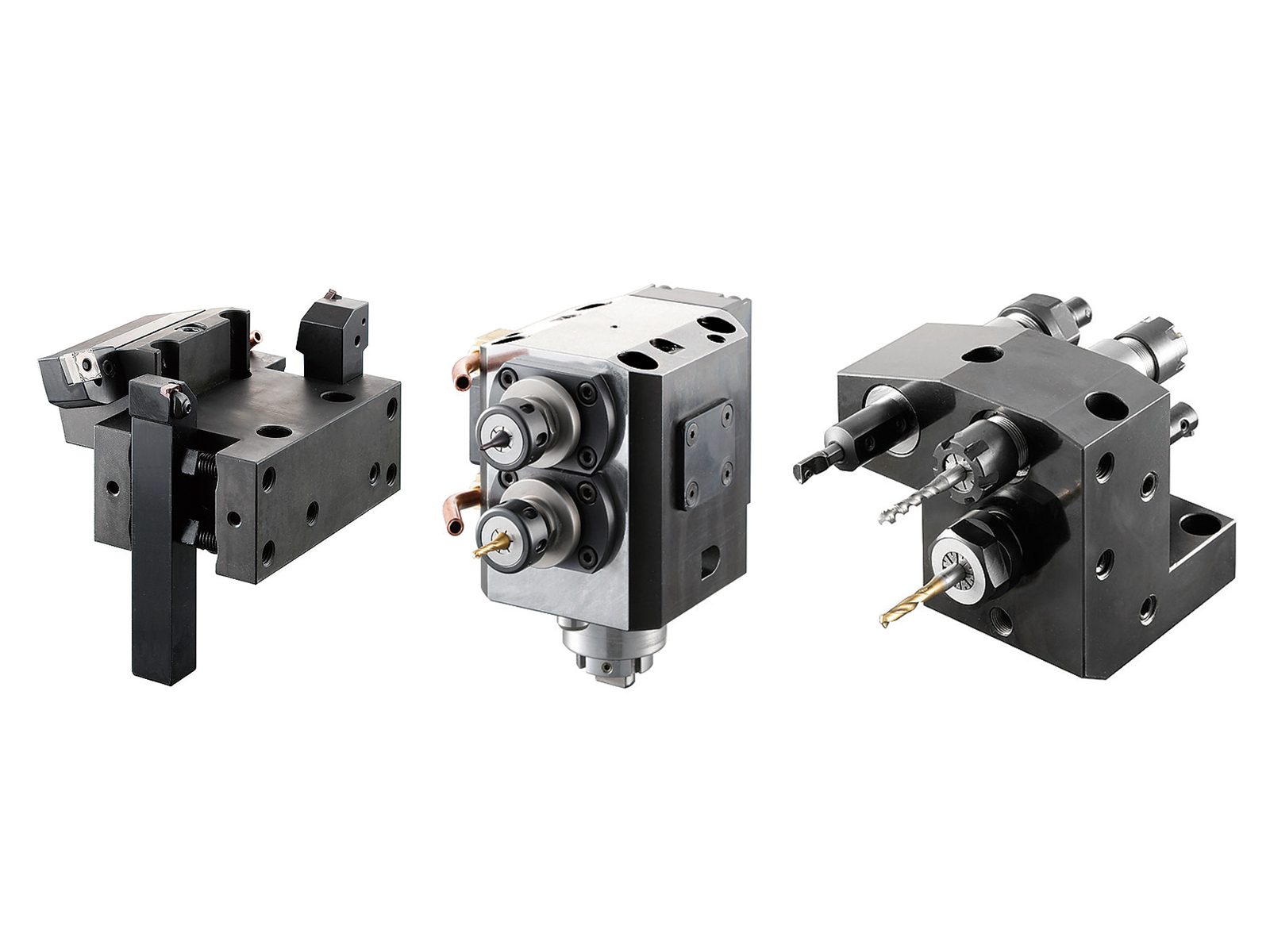

Type of Turret | 8St.Turret(half-indexing mechanism) | |
Shank Height of Square Turning Tool | □20mm | |
Diameter of Drill Shank | ø25mm | |
Rapid feed rate | Z1 axis | 20m/min |
X1 axis | 20m/min | |
Y1 axis | 12m/min | |
Z2 axis | 20m/min | |
X2 axis | 12m/min | |
Maximum Number of Revolving Tool | 8 | |
Machine Height | 1,620mm | |
Floor Space | 2,388×1,450mm | |
Machine Weight | 3,000kg |
