Discover exceptional value and performance with this Nearly New Miyano
ABX-64SYY, a high-precision CNC turning centre built for demanding multi-axis machining. With minimal hours and impeccable maintenance, this machine offers the capabilities of a new model at a significantly reduced cost. Ideal for complex part production, the ABX-64SYY features twin spindles, dual Y-axes, and advanced control technology, making it the perfect solution for manufacturers seeking efficiency, accuracy, and reliability. Don’t miss this rare opportunity to own a Nearly New Miyano ABX-64SYY in outstanding condition.
Serial Number: CT0221
Year of Manufacture: 2022
First Installed: May 2023
Accessories:

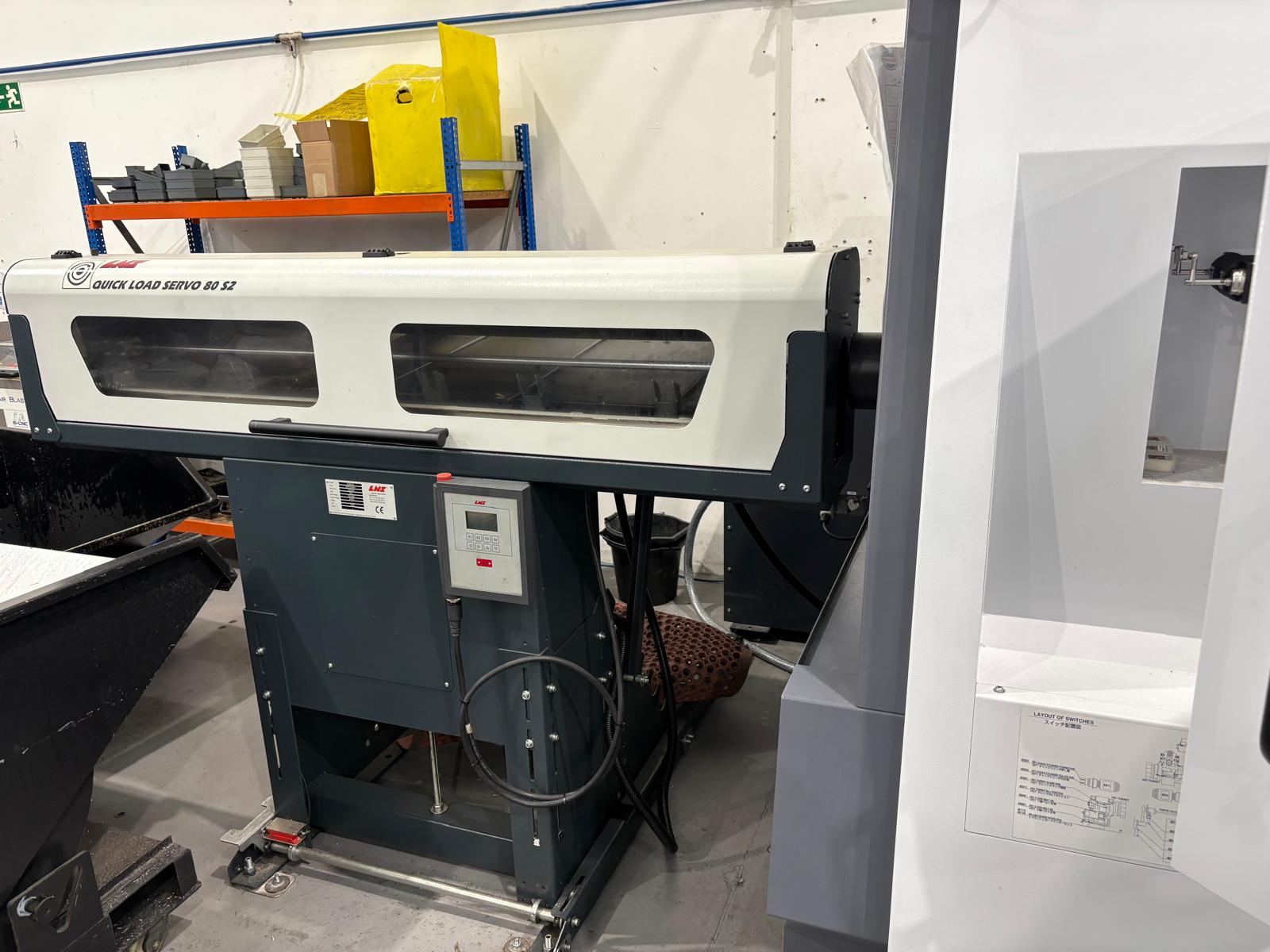

LNS Quick Load 80 S2 Bar Loader
Workpiece Conveyor
Hainbuch Collet Chucks
Selection of Face Driven Tools
Hydrajet MHP30-1000-3: 29ltrs/min @70 bar (thru 2.2mm orifice) High Pressure Coolant System
Crowther Combi 500 Swarf Conveyor + tipping bin
Absolent A.MIST10 Fume Extractor
Renishaw RLP40 radio probes including retractable cover
Coolant actuated work steady including turret mount
| Items | ABX-51SYY2 | ABX-64SYY2 | |
|---|---|---|---|
| Machining Capacity and Chuck System | |||
| Maximum Machining Diameter of Bar Work | SP1/SP2 | ø51/51mm | ø64/51mm |
| Collet Chuck | SP1/SP2 | Stationary | |
| Power Chuck | SP1/SP2 | 6″/6″ hydraulic drive | |
| Standard Turning Length | 125mm | ||

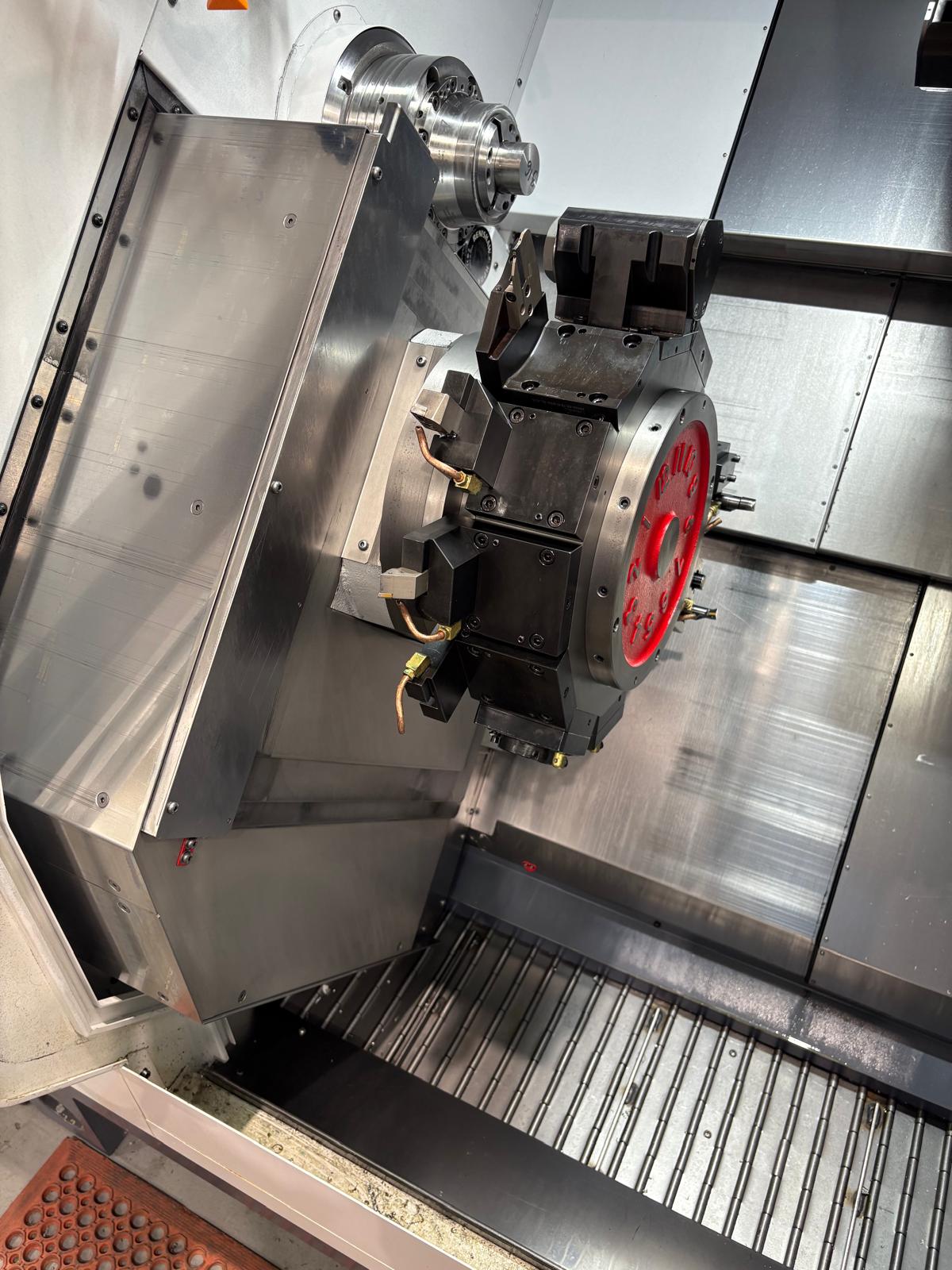

| Spindle | |||
| Spindle Nose | SP1/SP2 | A2-6/A2-6 | A2-8/A2-6 |
| Spindle motor(30min./Cont.) | SP1 | 15/11kW | |
| SP2 | 7.5/5.5kW | ||
| Spindle Speed Range | SP1 | 50 – 5,000min-1 | 40 – 4,000min-1 |
| SP2 | 50 – 5,000min-1 | ||
| Turrets(Upper L/R Turrets & Lower Turret) | |||
| Type of Turret | 12St.Turret | ||
| Shank Height of Square Turning Tool | □20mm | ||
| Diameter of Drill Shank | ø40mm ø20mm ø25mm | ||
| Slide Stroke | X1, X2 axis | 190mm | |
| Z1/Z2 axis | 550mm/721mm | ||
| Y1, Y2 axis | ±40mm | ||
| Zs axis | 756mm | ||
| Rapid Traverse Rate | X1, X2 axis | 16m/min | |
| Z1/Z2 axis | 30/20m/min | ||
| Y1, Y2 axis | 12m/min | ||
| Zs axis | 30m/min | ||
| Revolving Tools(Option) | |||
| Maximum Number of Revolving Tools | 24 | ||
| Rotation speed of revolving tools | 60 – 6,000min-1 | ||
| Rivolving Tool Motor | AC Servo 4.5kW | ||
| Machine Dimensions | |||
| Machine Height | 2,222mm | ||
| Floor Space | 3,290×2,204mm | ||
| Machine Weight | 10,750kg | 10,900kg | |
