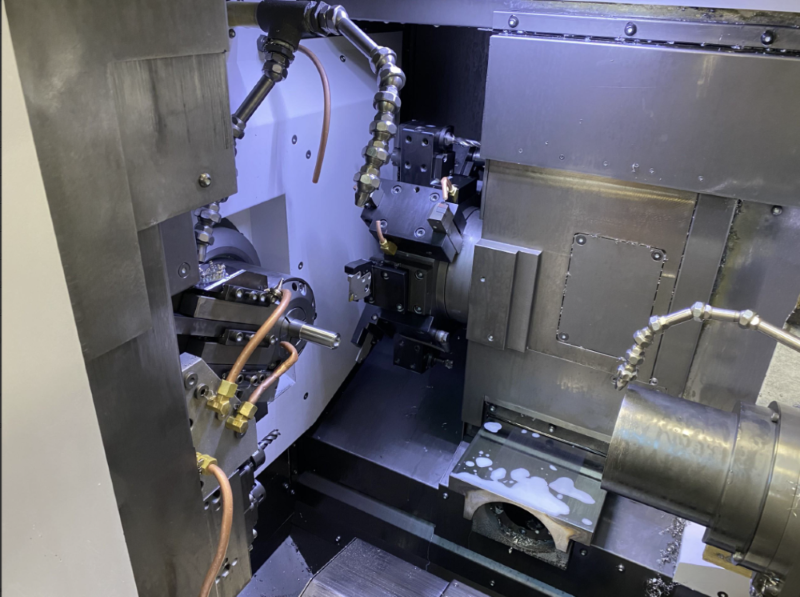

This used Miyano BNA-42GTY is a high-performance 7-axis CNC fixed head lathe that offers a powerful combination of speed, precision, and flexibility. Designed for complex machining tasks, it features both a gang tool post and a Y-axis turret, giving users the best of both worlds, gang tool speed for quick, efficient operations and turret flexibility for more intricate multi-axis work.
This model also includes LFV (Low Frequency Vibration) cutting technology, which helps reduce swarf build-up, improve chip control, and extend tool life, making it especially useful for machining difficult materials or producing small-diameter parts. Altogether, the BNA-42GTY is a compact, reliable, and efficient solution for manufacturers looking to achieve high-precision results in demanding production environments.
Serial Number: CV0159
Year of Manufacture: 2018
First Installed: August 2020
Accessories:

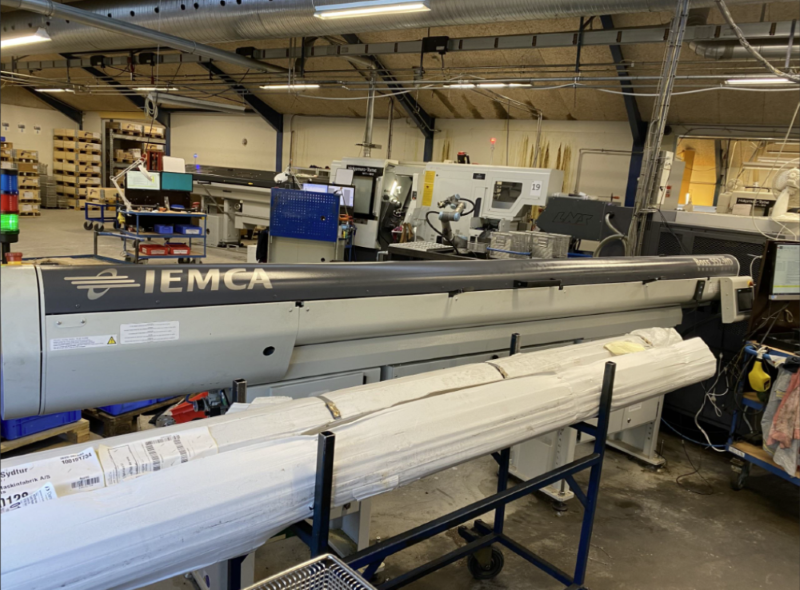

Iemca Boss 552/32 Magazine Barfeed
Workpiece Conveyor
LNS MF3 Swarf Conveyor & Bin
| Items | BNA-42GTY | |
|---|---|---|
| Maximum Machining Diameter of Bar Work | SP1 | ø42mm |
| SP2 | ø34mm | |
| Maximum Machining Length | 100mm | |
| Spindle motor(15min./Cont.) | SP1 | 11/7.5kW |
| SP2 | 5.5/3.7kW | |
| Spindle speed | SP1 | 6,000min-1 |
| SP2 | 5,000min-1 | |
| Type of Turret | 8St.Turret(half-indexing mechanism) | |
| Shank Height of Square Turning Tool | □20mm | |
| Diameter of Drill Shank | ø25mm | |
| Rapid feed rate | Z1 axis | 30m/min |
| X1 axis | 24m/min | |
| Y1 axis | 30m/min | |
| Z2 axis | 20m/min | |
| X2 axis | 20m/min | |
| Y2 axis | 12m/min | |
| Z3 axis | 20m/min | |
| X3 axis | 12m/min | |
| Maximum Number of Revolving Tools | 8 | |
| Machine Height | 1,680mm | |
| Floor Space | 2,350×1,475mm | |
| Machine Weight | 3,750kg |
