Kid 80 - Iemca Barfeeds

The Short, Simple and Fast

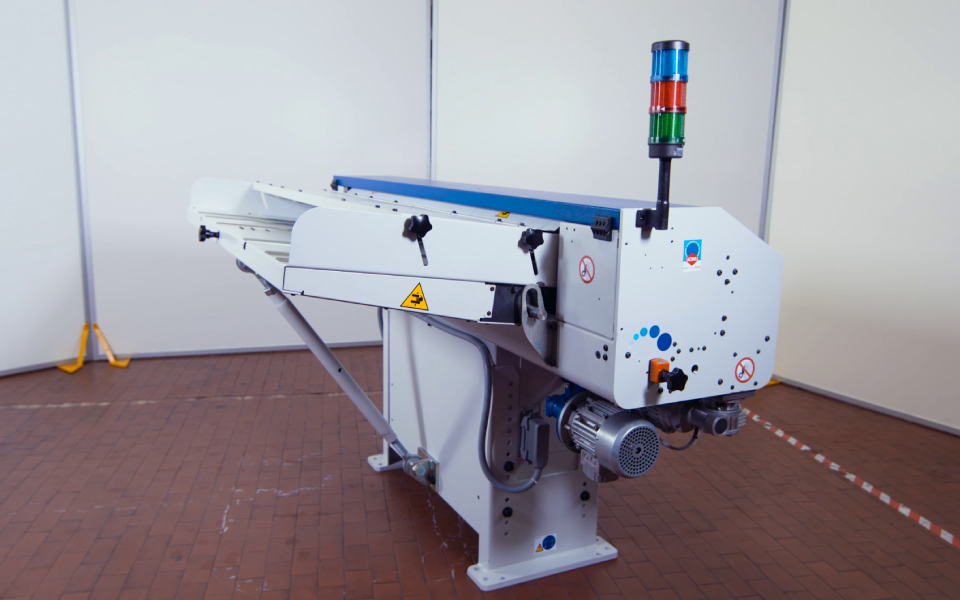

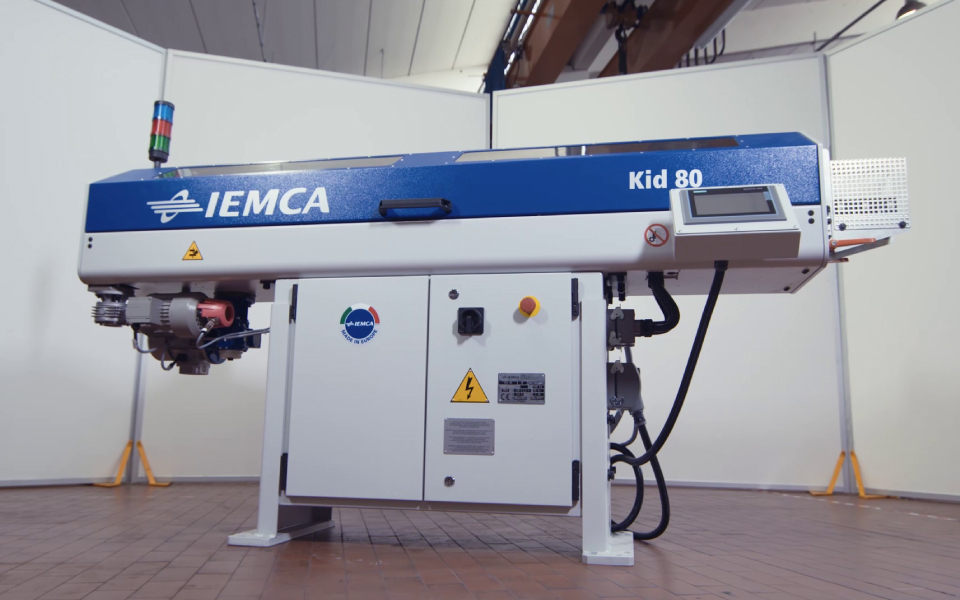

The Kid 80 – Iemca Barfeed is a short automatic high-performance bar feeder, ideal for applications on CNC lathes with fixed headstock, also equipped with counter spindle. The KID 80+ is capable of machining short bars with diameters from 5 to 80 mm, and lengths from 90 to 1,615 mm. It is designed to meet the needs of those looking for accurate machining short bars, versatility at frequent changing of machining and reduced space occupied on the ground. The KID 80+ is simple to use, robust and features sub-spindle mode functionality.

For more information please click here.

Kid 80 – Iemca Barfeeds – Characteristics

  • Round bars 5 – 80 mm
  • Bar length 250 – 1,615 mm
  • MP Magazine available Yes, 600 mm
  • F Magazine available No
  • Hexagonal bars 5 – 65 mm
  • Fixed headstock Yes
  • UP Magazine available No
  • Remnant length N/A
  • Square bars 5 – 50 mm
  • Mobile headstock No
  • P Magazine available No
  • Bar changeover time 30 sec.

Specifications

  • Bar weight Max 60 kg
  • Reversible magazines Yes
  • Compressed air No
  • Bar feeder weight 550 kg
  • Feed rate 750 mm/sec.
  • Installed power 1 kW
  • Number of spindles 1
  • Return speed 1000 mm/sec.
  • Operating Voltage 220/400 V

For more accessories see here.
