Specifically designed for the machine that requires versatility with the combination of two conveyors in one.

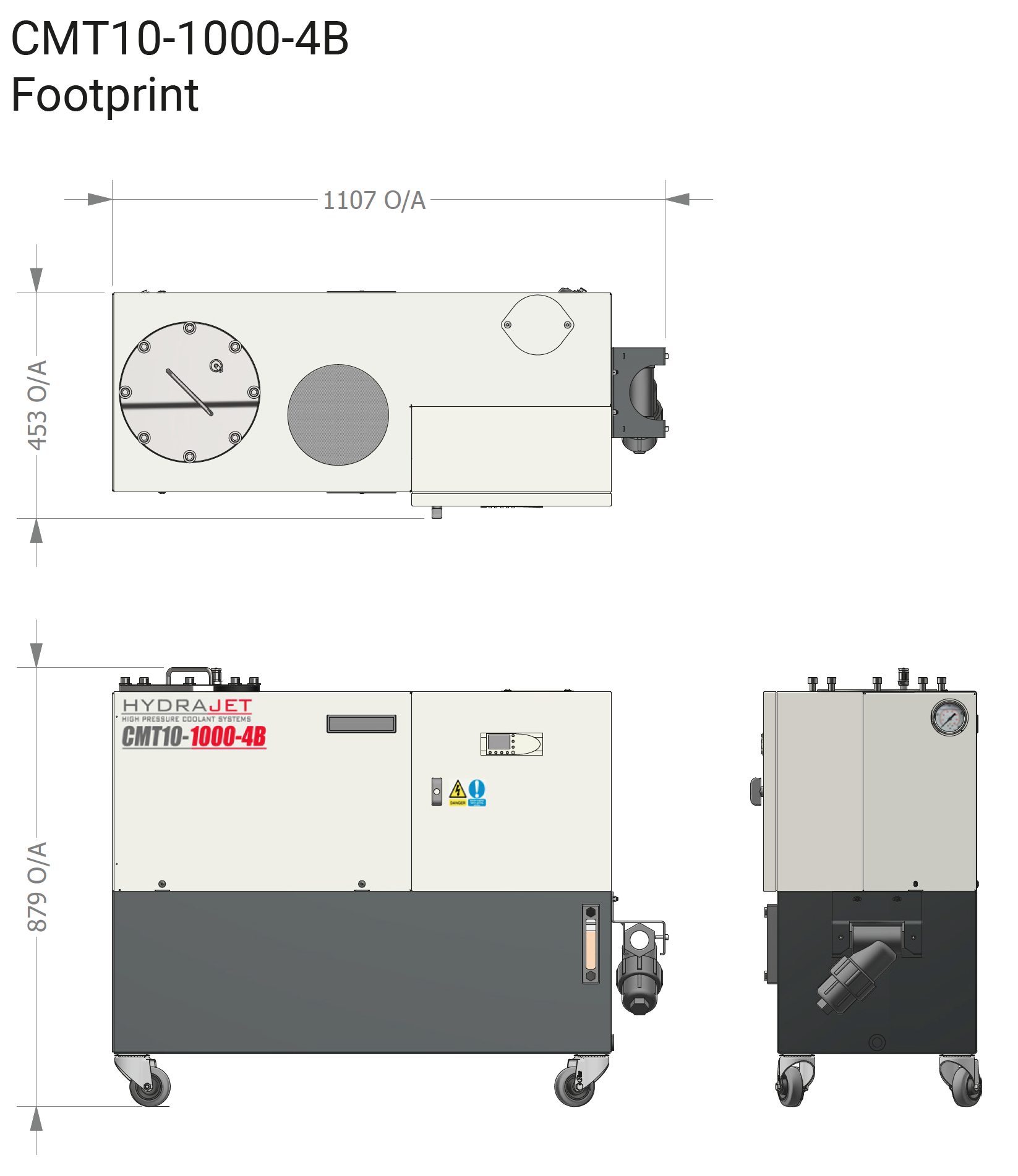

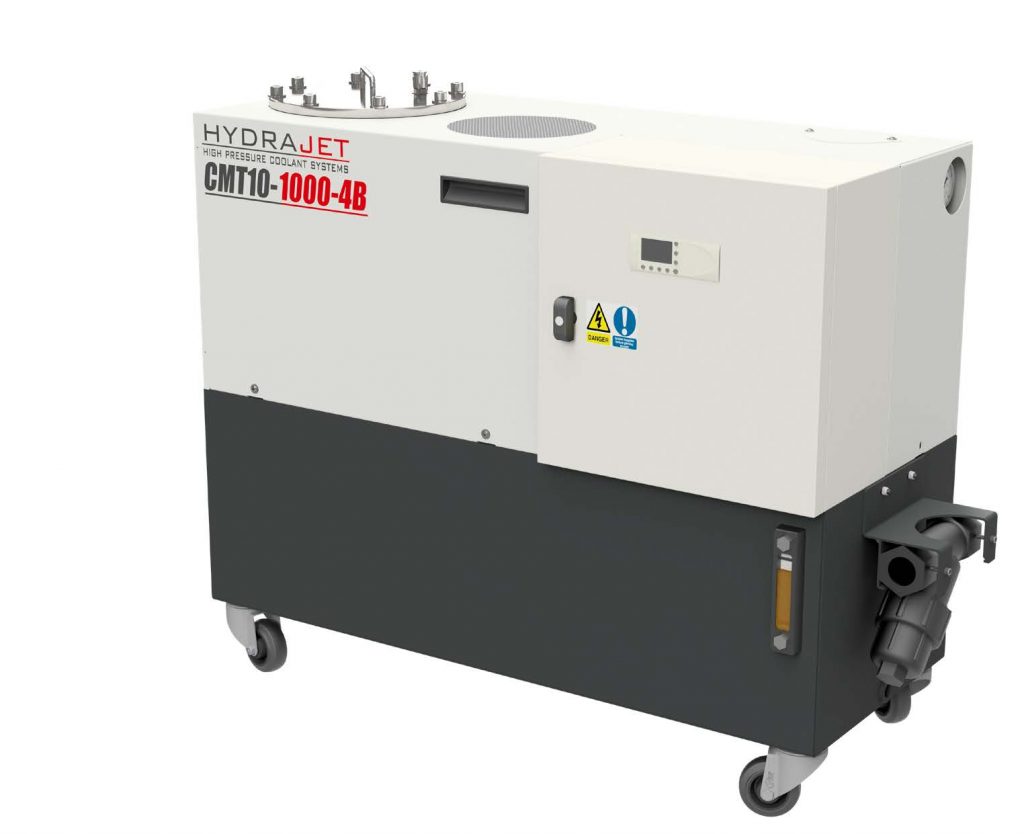

The Hydrajet CMT10-1000-4B High Pressure Coolant Pump from Pumps and Equipment delivers consistent coolant pressure up to 1000 psi, making it a reliable choice for Citizen CNC sliding head lathes. Featuring a 4 outlet pump design and a compact, mobile tank system, the Hydrajet CMT10-1000-4B offers excellent chip clearance, extended tool life, and superior surface finishes across a range of materials. Its portable configuration allows for flexible integration on the shop floor, making it an ideal solution for manufacturers seeking high-performance coolant delivery in a versatile, space-saving package.

 – Inlet Pressure – Flooded Suction
– Maximum Pressure – 70 Bar
– Maximum Flow – 10 Litres
– Tank Volume – 120 Litres
– RPM – 1420
– Voltage – 415V
– Power – 12 Amps
– Kilowatts – 2.5KW
– Single Filter – 10 μm (micron)
– Outlets – 4x
– Integrated Control Panel
– Integral Filter Feed Pump

For more information, visit Pumps & Equipment’s website here.
