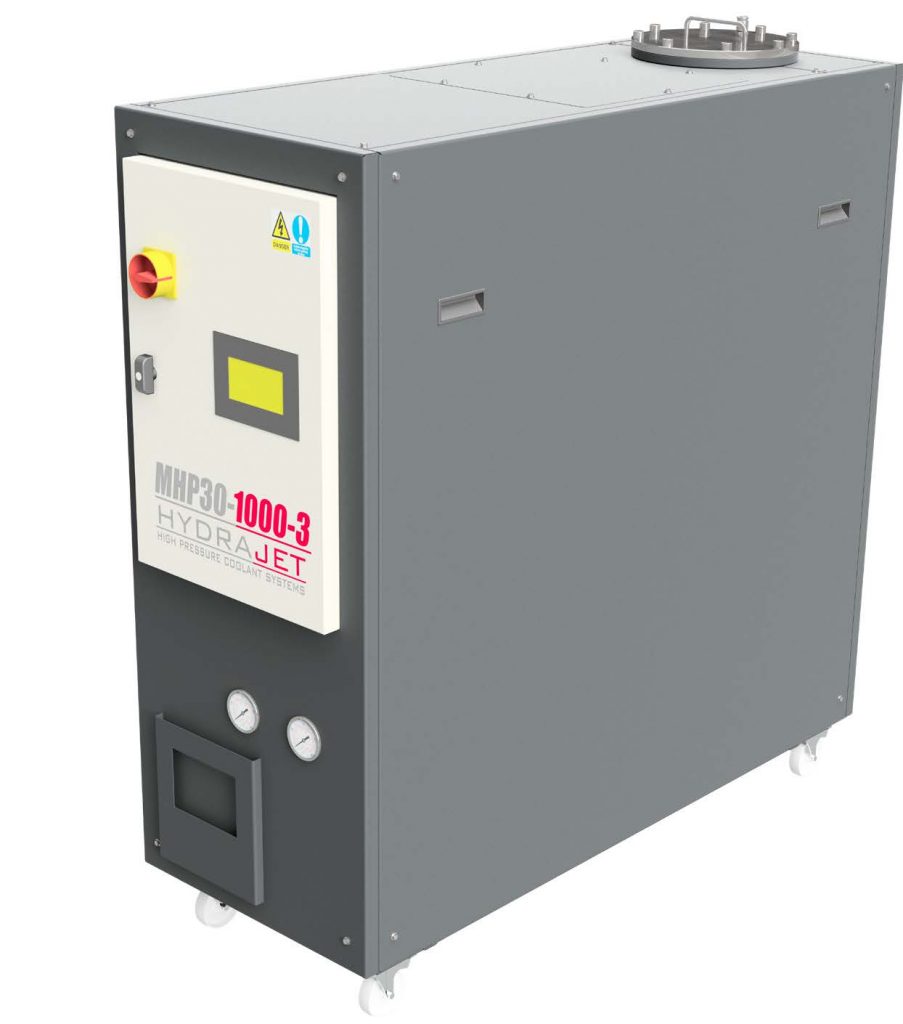

Hydrajet MHP30-1000-3

Specifically designed for the machine that requires versatility with the combination of two conveyors in one.

The Hydrajet MHP-1000-3 High Pressure Coolant Pump by Pumps and Equipment offers a robust and efficient solution for enhancing the performance of Citizen CNC sliding head lathes. Delivering coolant pressure up to 1000 psi through a 3 outlet pump system, the Hydrajet MHP-1000-3 ensures effective chip evacuation, reduced heat generation, and extended tool life. Its modular, machine-mounted design provides a space-saving alternative to floor-standing systems, making it ideal for workshops where footprint and flexibility are key. Reliable and easy to maintain, it’s a smart upgrade for high-precision, high-output operations.

 Inlet Pressure – Flooded Suction
– Maximum Pressure – 70 Bar
– Maximum Flow – 30 Litres
– Tank Volume – 100 Litres
– RPM – 1420
– Voltage – 415V
– Power – 15 Amps
– Kilowatts – 7KW
– Single Filter – 10 μm (micron)
– Outlets – 3x
– Integrated Control Panel
– Integral Filter Feed Pump

For more information, visit Pumps & Equipment’s website here.
